High-speed document scanner DS-970

colorhigh-resolutionautomated

Overview

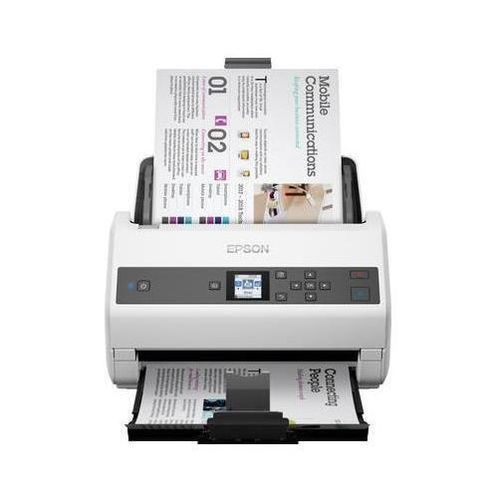

The WorkForce DS-970 is a high-throughput A4 sheetfed scanner from Epson designed for centralized office and departmental scanning. It combines single-pass duplex capture with wide media support and drivers for common document management systems (TWAIN, WIA, ISIS).

Key features

• ADF capacity: 100 pages; scanning speed up to 85 pages/min (170 images/min duplex, A4 at 200/300 dpi).
• Broad media handling: 27–413 g/m², long-document support up to 6,096 mm; slow mode for fragile media.
• Reliable feeding: Active Separation Roller system and ultrasonic double-feed detection with DFDS option for difficult media.
• Single-pass duplex (dual CIS) capture, 3.7 cm colour panel, ReadyScan LED light source.
• Connectivity and software: USB 3.2 Gen 1x1; includes Document Capture Pro, Epson Device Admin, Epson Scan 2.

What is in the box?

• Main unit
• AC adapter
• Power cable
• USB cable
• Driver and utilities
• Setup guide
• Warranty card

Technical specifications

• Scanner type: Sheetfed scanner
• Optical resolution (ADF): 600 DPI × 600 DPI
• Output resolution: up to 1200 DPI
• ADF document size (min/max): 50.8 × 50.8 mm / 215.9 × 6,096 mm
• Supported formats: A4, A5, A6, B4, B5, B6, Letter, Legal, postcard, business cards, plastic cards
• Colour depth: Input 30-bit colour / 10-bit mono; Output 24-bit colour / 8-bit mono
• Daily duty cycle: 14,000 pages; ADF capacity: 100 sheets; duplex: yes (single-pass)
• Interfaces: USB 3.2 Gen 1x1; drivers: TWAIN, ISIS, SANE, WIA, ICA
• Dimensions (W×D×H): 296 × 169 × 167 mm; Weight: 3.6 kg
• Operating conditions: 5 °C–35 °C; humidity 15%–80%
