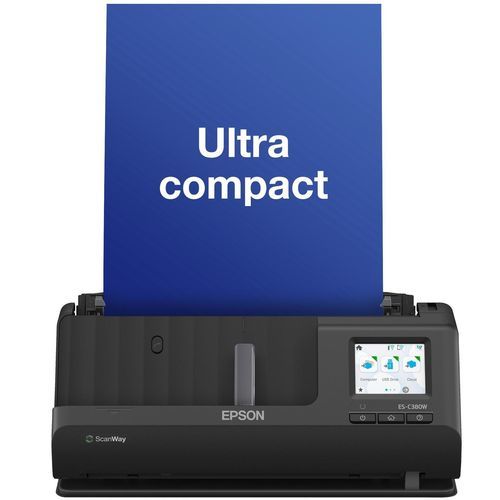

Touch document scanner ES-C380W

colorwirelesscompact

Overview
The ES-C380W is a compact A4 document scanner offering Wi‑Fi connectivity and a switchable U‑turn or straight paper path for flexible media handling. The U‑turn path minimises the device footprint while the straight path accepts passports and booklets up to 5 mm thick. Supports scanning directly to cloud services, network folders, email and USB without a PC. Low power consumption reduces environmental impact.

Key features

• PC-free scanning via the colour touchscreen to OneDrive, SharePoint Online, Microsoft Teams and other cloud services.
• Switchable U‑turn and straight paper paths for a wide range of originals, including passports and booklets up to 5 mm.
• Ultra-compact footprint suitable for constrained desk space.
• Versatile media handling: passports, receipts, invoices, envelopes, plastic cards, long documents and A3 (stitched).
• Image and text enhancement: de-skew, auto-rotation, text sharpening, edge fill, punch-hole removal and shadow correction.
• Energy efficient with low power consumption in ready and sleep modes.

What is in the box?

• Main unit
• Power cable
• Setup guide
• USB cable
• Warranty document

Additional overview notes
Operate without a PC using the colour touchscreen to scan to network folders, email, USB or supported cloud services. Compatible with Windows, Mac, Chromebook, Android Mopria, Apple AirPrint and the Epson Smart Panel app. Includes drivers and software to integrate into document workflows.

Technical specifications

• Model: ES-C380W
• Scanner type: Sheetfed scanner (single pass duplex)
• Optical resolution (ADF): 600 x 600 DPI
• Output resolutions: 75, 100, 150, 200, 240, 300, 400, 600, 1200 DPI
• ADF min/max document size: 50.8 x 50.8 mm / 215.9 x 5588 mm
• Paper formats: A4, Letter, A5, A6, B5, B6, postcards, business cards, plastic cards, Legal
• Colour depth: Input 30-bit colour / 10-bit mono; Output 24-bit colour / 8-bit mono
• Optical sensor: CIS
• Light source: ReadyScan LED
• Scanning speed: 30 ppm (A4, 300 DPI) mono/colour; up to 60 ipm images
• ADF capacity: 20 sheets
• Paper weight (auto loading): 40–413 g/m²
• Duplex: Yes (single pass)
• Duty cycle: 3,500 pages/day
• Output formats: BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, PDF/A, PNG
• Interfaces: Hi‑Speed USB (USB 2.0), Wireless LAN IEEE 802.11a/b/g/n, Wi‑Fi Direct
• Power: AC 100–240 V
• Energy use: 10 W (operation), 3.3 W (ready), 1 W (sleep), 0.1 W (power off)
• Dimensions: 296 x 104 x 125 mm (W x D x H)
• Weight: 1.9 kg
• Panel: Colour touchscreen, 6.1 cm diagonal
• Drivers/software: Epson Scan2 (TWAIN), SANE, WIA, ICA; Epson Device Admin, Epson Scan 2, Epson ScanSmart
• Supported OS: Windows 7/8/10/11, various Windows Server versions, Mac OS 10.9–10.13
• Operating temp/humidity: 5°–35°C; 15%–80% RH
• Storage temp/humidity: -25°–60°C; 15%–85% RH
• Options: Roller Assembly Kit
