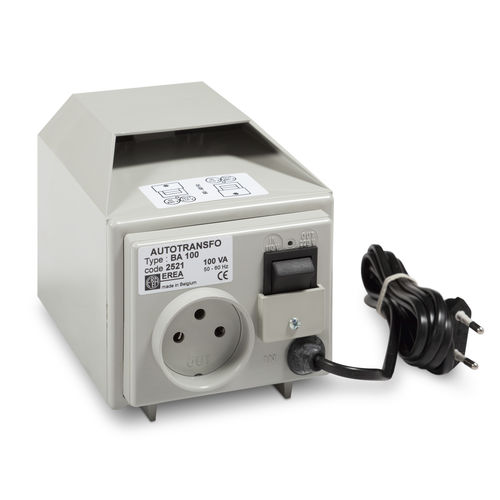

Power auto-transformer BA 100
dryindustrialsingle-phase

power auto-transformer
power auto-transformer
Add to favorites
Compare this product


Characteristics

Type
power
Configuration
dry
Applications
industrial
Electrical characteristics
single-phase
Other characteristics
vacuum impregnation, portable
Electric power

100 W

Primary voltage

110 V, 230 V

Secondary voltage

110 V, 230 V

Description

Portable single-phase auto-transformer - U 110-230V - Power 100VA Electrical Characteristics Power (VA): 100 Primary Voltage (Vac): 110-230 Secondary Voltage (Vac): 110-230 Frequency (Hz): 50-60 Dielectric constant in relation to mass (Vac): 2000 Efficiency (%): 91 Pcu (W): 5 Po (W): 3 General properties Standards: EN 61558-2-13 Application: Alle toepassingen Protection class: II IP degree: IP20 Specific property: Reversible Portable Max ambient temperature Ta (°C): 40 Temperature class of the transfomer: E Mechanical Properties Primary connection: Mains cable Secondary connection: Socket outlet Dimensions: A (mm):160 B (mm):110 C (mm):120 M (kg)1,60 Options On request: Other voltage and power ratings With electrostatic screens
