Multi-parameter testing machine Model 111

deformationautomaticPLC-controlled

Product Overview
The Electro-hydraulic Erichsen cupping machine – Model 111 is an electronically controlled sheet metal testing machine with an electro-hydraulic drive and a maximum drawing force of 45 kN. Its functional design ensures user-friendliness, and it is equipped with a clear touch panel interface, allowing for easy navigation, five freely programmable programs, and tool changes. Password-protected levels safeguard against unauthorized access.

Key Features

• Touch panel displays all required parameters: drawing stroke, drawing force, and drawing speed.
• Individually adjustable crack detection system.
• Automatic test procedure, including crack detection and specimen release.
• Sturdy construction for long-term repeatability and minimal wear.

Purpose and Application
This machine is designed for quick and easy quality conformance inspection and quality control on sheet and strip metal. Its robust build makes it especially suitable for production monitoring.

• Reduces manufacturing costs by enabling spot checks on drawing quality during production.
• Allows immediate sorting of lower quality materials upon arrival, without special test preparation.
• Helps determine the most suitable sheet thickness for specific workpieces, optimizing cost and suitability.

Quantitative assessment of sheet quality is achieved using the ERICHSEN Cupping Value, facilitating communication between producers and users. The machine provides valuable information on crack shape and surface roughness (grain size), indicating the quality and drawability of sheet metal.

Design

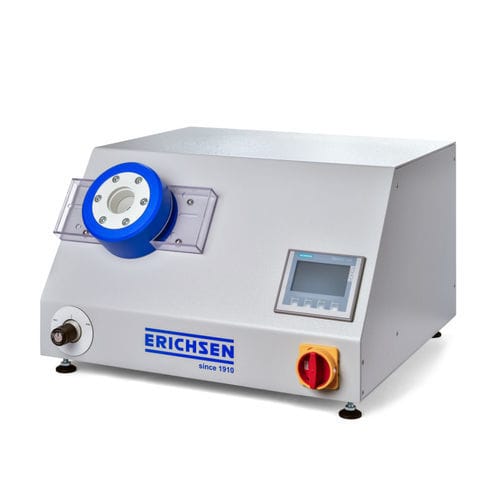

The Model 111 is a compact, work-top model requiring minimal space. All hydraulic and electronic components are housed in a sturdy sheet metal enclosure. The control elements and touch panel are clearly arranged on the front. The test cylinder is angled for comfortable operation while seated. Specimen removal is automatic after testing, and the entire process, including crack detection, is automated.
During the ERICHSEN Cupping Test, the specimen is inserted and centralized in the test cylinder. After pressing Start, a fixed sheet holder force of 10 kN is applied, followed by the deep-drawing process.

Standards

• ISO 8490
• EN 14-58
• EN 14-67
• EN ISO 20482
• JIS Z-2247

Technical Specifications

• Drive: Electro-hydraulic
• Test: Erichsen cupping
• Dimensions: approx. 620 x 370 x 700 mm
• Net weight: approx. 135 kg
• Mains supply: 230 V, 3~, 50 Hz
• Punch stroke: 19 mm
• Drawing Force: max. 45 kN / 100 bar
• Drawing Speed: max. 150 mm/min
• Power consumption: 1.5 kW
• Blank Holder Force: 10 kN 1.5 kN
• Specimen dimensions: max. 105 x 2 mm (sheet width x sheet thickness, for tensile strength approx. 400 N/mm²)
• Portable / Stationary: Stationary
