Earing measuring instrument Model 126

opticalnon-contactlaboratory

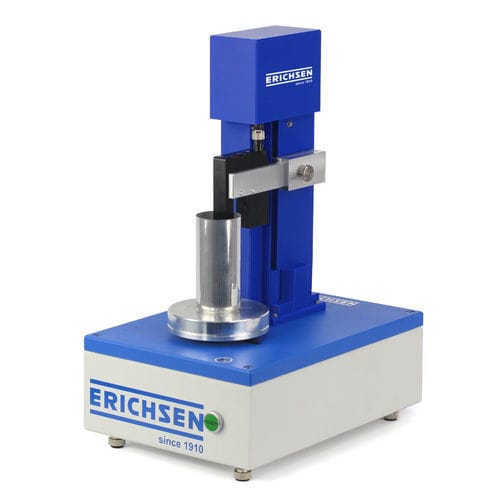

The Ear Measuring Instrument Model 126 Plus-Optic is a stationary device for optical, contactless axial measurement of earing on deep-drawn cups and raw cans. It records the cup edge during one rotation and provides standardized evaluation with exportable protocols.

Overview

• Optical, contactless measurement of earing on deep-drawn cups using an optical sensing unit (Model 126 Plus-Optic); no mechanical chuck required — cups are magnetically attached to the rotary table in the Optic variant.
• Device composition: rotary table and vertical gauge head. For non-optic variants, a jaw chuck centres and fixes the cup.
• Measurement is performed during one rotation of the rotary table while the sensor scans the cup edge; pneumatic versions use a test roller that lowers onto the sample.
• Operation via supplied evaluation software on PC or directly at the device; PC is to be supplied by the customer.

Test principle and results

• The measuring unit detects the cup edge during a single revolution and returns to its home position after measurement to enable quick sample change.
• Output formats: .pdf, .txt, .csv (importable into MS Excel).
• Measurement protocol includes (among others):
• He_(mm) = Average earing height
• He,max (mm) = Maximum earing height
• H_(mm) = Average cup height
• Z(%) = Average earing percentage
• Number of earings
• Date, lot, operator and other protocol metadata

Scope of delivery

• Ear Measuring Instrument, Model 126 Plus-Optic
• Evaluation software
• Manufacturer test certificate M

Standards

• DIN EN 1669
• ISO 11531

Accessories (example)

• Calibration rings (2 rings) — accessory item (Order number: 29490132)

Technical specifications

• Drive: Electronic
• Weight: approx. 12 kg
• Housing: Steel, powder coated
• IP code: IP20
• Footprint (L x W): 350 x 250 mm; Max height: 550 mm
• Cup height range: 15–150 mm
• Cup diameter range: 25–120 mm (other diameters on request)
• Power supply: 110–240 V AC, 50/60 Hz
• Sensing device: optical
• Data connection: USB
• Electrical power: 60 VA
• Sensor resolution: 0.014 mm
• Subpixel accuracy: 0.007 mm
• Measurement stroke: 25 mm
• Time per measurement: approx. 18 s
• Required additional equipment: PC, min. Windows 10
• Portable / Stationary: Stationary
• Instrument accuracy: ±0.04 mm
• Permissible ambient temperature: 10–40 ºC
• Measurement values per revolution: ~1500
• Order number: 33970131
