Deformation testing machine Model 100

manualfor sheet metalfor films and thin products

Overview
The Model 100 is a bench-mounted, manually operated Erichsen cupping machine for evaluating sheet and foil formability using the standardized Erichsen cupping test. It is designed for simple, low-effort operation and is suitable for limited in‑factory testing and thinner materials.

Application
This manually operated tester is intended to assess drawing properties of ferrous and non‑ferrous metals and foils; it is particularly suitable where only limited sheet metal forming tests are required and for thinner materials and foils.

Purpose
The Model 100 provides a quick and simple method to determine the drawing quality of sheet metal to identify the lowest‑cost material suitable for a drawn part. The standardized Erichsen cupping value also indicates surface grain size at the bulge tip and can be used in material specification for purchasing.

Description

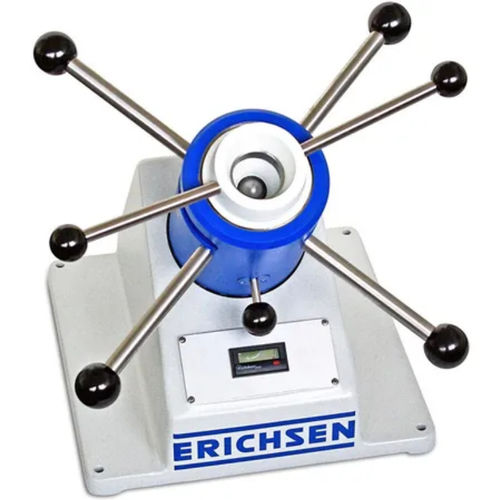

The unit is a bench-mounted machine with a cast‑iron body and a cylindrical test head. The specimen or foil is introduced through the opening in the test head, the test head is tightened against a locating sleeve to clamp the blank with the standard blank‑holder force, and the clutch pin is pulled to start the cupping action. The current cupping value is shown on a digital counter. The forming process and crack appearance can be observed from above through the blankholder; in poor light or with small test tools a microscope with battery illumination is recommended.

Scope of delivery

• Sheet metal testing machine, Model 100
• Test tool No. 27
• Standard lubricant to DIN, ISO and EURONORM
• Operating instruction manual

Standards

• ISO 8490
• EN 14-58
• EN 14-67
• EN ISO 20482
• JIS Z-2247

Technical specifications

• Drive: Manual
• Test: Erichsen cupping
• Dimensions (W × D × H): approx. 340 × 350 × 450 mm
• Punch stroke: max. 18 mm
• Drawing force: 30 kN
• Drawing speed: Manual
• Blank holder force: 10 kN (fixed setting)
• Portable / Stationary: Stationary
• Specimen panel width: 13 – 90 mm
• Measuring result display: Digital (accuracy 0.1 mm)
• Specimen panel thickness: 0.1 – 1.5 mm (foils — minimum thickness: 0.005 mm)
