deck bakery oven / electric / steam
PANTER xx B, PANTER xxx B series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

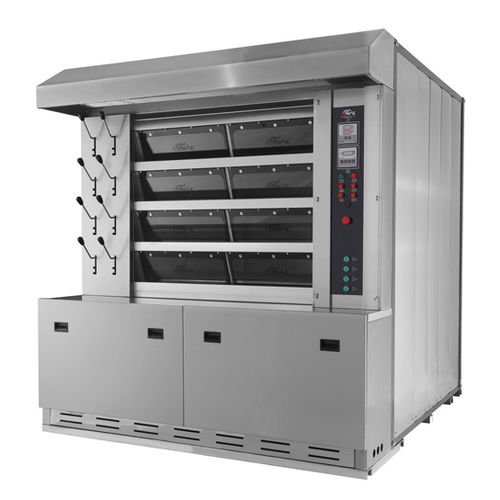

deck bakery oven deck bakery oven - PANTER xx B, PANTER xxx B series
  • Deck bakery oven
{{requestButtons}}

Characteristics

  • Type:

    deck

  • Other characteristics:

    electric, steam

  • Maximum temperature:

    Max.: 240 °C (464 °F)

    Min.: 220 °C (428 °F)

Description

PANTER 40 B

Special stone brick system inside the burning chamber provides maximum effciency with the fuel consumption. Flexibility in consumption of any kind of fuel like diesel, fuel-oil, gas, coal, wood etc. with this oven you have the chance of choosing the cheapest heating source. Very low electric and maintenance costs because of less mechanical operating parts and malfunctions. Steam-tube pipes surrounding around the baking chamber to ensure homogeny and intense baking. With the special automatic glass cover design, there will be no time loss while loading and emptying. Through the heat resistance glass doors, baking process of the bread can be watched without opening the doors. Easy to
use the selenoid steam valves controlled on both sides of the oven. Best bread color
because of the smooth steam. Best baking because of the special casting deck stones.
Heat in the burning chamber bricks and the tubes is so effcient, there’s no need
to stop the production even there is power outage for a long time

TECHNICAL SPECIFICATIONS
TYPE PANTER B 40
TOTAL BAKING AREA 4 M2
BAKING AREA OF EACH DECK 1 M2
NR OF DECKS 4
NUMBER OF PALLET 8
BAKING TEMPERATURE 16-18
BAKING CAPACITE (pc / h ) 256
BAKING TEMPERETURE 220-240 C
TOTAL WEIGHT 2600 kg
INTERNAL DIMENSIOONS
DEPTH ( D ) 1260 mm
WIDTH ( B ) 800 mm
EXTERNAL DIMENSIONS
DEPTH ( E ) 2260 mm
WIDTH ( A ) 1400 mm
HEIGHT ( C ) 2120 mm
