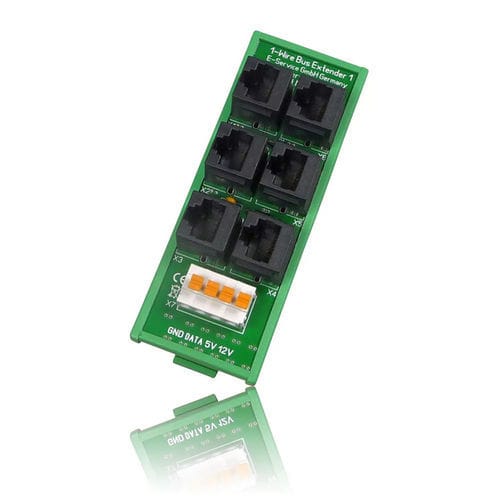

Passive distributor 11140

DIN rail

1-Wire distributor with 6 outputs on RJ45 modular sockets Description Passive 1-wire distributor with 6 outputs on RJ45 modular sockets Distributor module for sensors and actuators with RJ45 socket system The distributor supplements the existing 1-Wire cabling system based on network cables. This enables fast and cost-sensitive cabling. Properties Internal sensors: - no sensor - Mounting: - DIN rail, Top-hat rail or also called mounting rail. According to DIN EN 60715:2018-07, TH 35, formerly TS 35, a mounting rail with top hat profile is Desktop, mobile application Number of inputs / outputs: - 1 - channel output 6 - channel input Protection circuit: - Reverse polarity protection for voltage supply / power supply Overvoltage protection for the voltage supply / power supply Internal backup capacitor / buffer / block capacitor between 5V and GND for stable operation of 1-Wire sensors, highly recommended for industrial use Data interface: - Industrial 1-Wire Bus (5V, 1-Wire Data and Ground (GND)) - Function: - 1-wire distributor - Power supply, Supply Voltage: - System supply, 5VDC (1-Wire main voltage) System supply, 12VDC (1-Wire auxiliary voltage) Connection type: - 6 x RJ45 sockets with 1-Wire standard assignment 12V, 5V, Data and GND (sockets connected in parallel) Pressure connection terminal for connection to 1-Wire Hub or 1-Wire Bus Coupler/1-Wire Controller
