DC power supply 11322

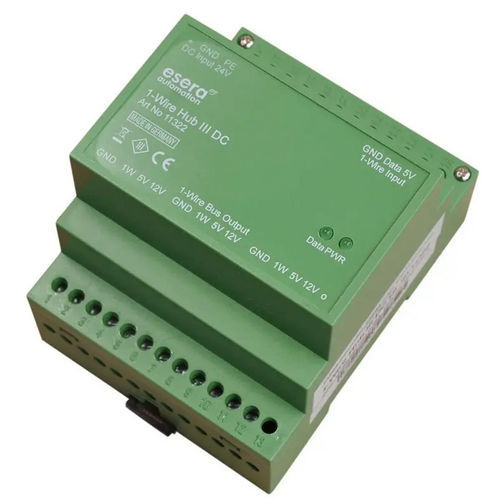

1-Wire Hub III DC, central power supply and distribution for the 1-Wire network with 24VDC input voltage. The 1-Wire Hub III DC is the central module for building a 1-Wire network. The 1-Wire Hub III DC supplies the 1-Wire network with 5V and 12V voltage and distributes the 1-Wire data line. 1-Wire Hub III DC can be ideally combined with a 1-Wire bus coupler (USB, Ethernet or serial) or 1-Wire controller. The input voltage of the 1-Wire Hub III DC is nominally 24VDC (18-36VDC) and is therefore especially suited for system environments with DC voltage supply, such as PLC controls. Equipment / Function: Central power supply of the 1-Wire network 1-Wire distribution for several bus sections LED display for power and 1-Wire activity Measurement function for the output voltages (voltage and current measurement for the 5V and 12V output)Note: The device has no repeater function for the 1-Wire data signal, which means that the device does not increase the possible network size. Note: The device has no repeater function for the 1-Wire data signal, which means that the device does not increase the possible network size.
