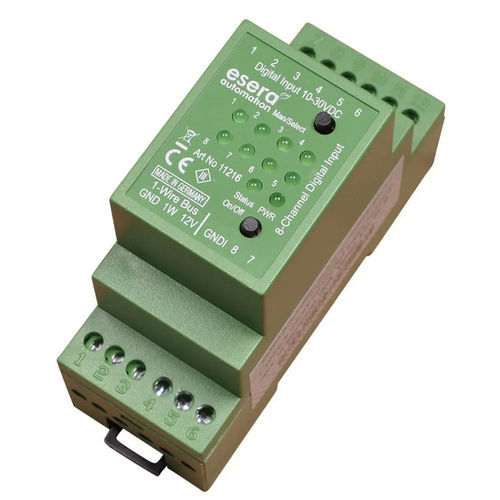

Digital input module 11216

8-channelnetwork

8-Fold Digital Input / Binary Input 10-30V DC for Smart Bulding, IoT, Industrial and Commercial. Industrial 1-Wire Bus. Supports EPuP, Auto-E-Connect Description With the 8-fold digital input module the status of 8 switches, reed contacts or all kinds of digital sensors can be queried. The status of the switch inputs is displayed via the LED indicators on the front panel.When the input voltage is present, the respective LED indicator lights up. Advantage You can acquire 8 digital signals via one module Via manual keys you can simulate an input status without the input being connected. This is very helpful during commissioning or maintenance. Per ESERA extended Plug and Play system, called "Auto-E-Connect", the 8-fold digital input is installed fully automatic in ECO Controller easy and fast. Features Interference immunity: For protect the inputs against interference, the module has filters with a delay of only 30ms. Sto rage: Even short changes of the input signals are stored. So no signal or pulse can be lost between the reading cycle. Manual function: Each input can be set manually by push button for test purposes, maintenance or development. Isolation: The inputs are isolated from the 1-Wire network by optocouplers. This allows very long connection cables between the module and the sensors without interfering with the 1-Wire bus. In addition, the isolation between switch inputs and 1-Wire network provides increased safety. For the operation of the module we recommend the use of one of our 1-Wire Hub modules.
