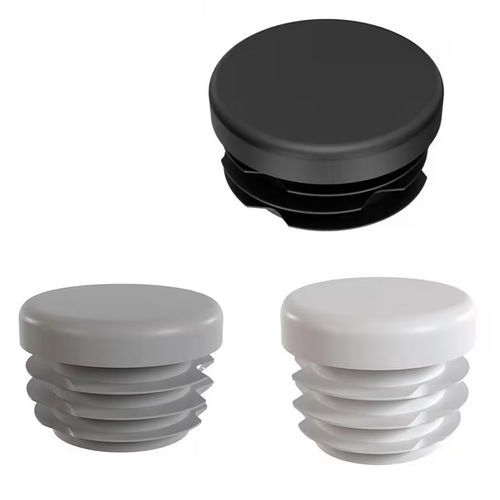

Threaded insert SR1530polyethyleneround
Add to favorites
Compare this product
Characteristics
- Type
- threaded
- Material
- polyethylene
- Configuration
- round
Description
Product Details
Multi-function Round Tube Inserts are an ideal choice when aesthetics of your final product is not a priority. They fit tightly into round tubing, posts or poles and assist with preventing contamination, while offering safety, and a clean finish from sharp edges on freshly cut tubes. A practical and cost-effective range that includes thinner walls and a wide variety of sizes, fulfilling the essential requirement of tube insert protection. They are a practical choice, particularly if the appearance of your application is not a crucial factor. Easy to install by hand-pressing or with the use of a mallet, resulting in a quick and efficient assembly process. They can be used in machine building or any application where structural tubing is required. It is advised to choose a coloured option to improve the asthetical appearance of your finished project, as it will blend with the paint and provide a pleasing visual finish.
Material
LDPE
Colour
Grey, White, Black
Series Code
SRILT
Technical Specifications / Characteristics
Available Sizes (Selection)
Item Code | Colour | H1 (mm) | h (mm) | Max Wall Thickness (mm) | D (mm) | Min Wall Thickness (mm)
20774127 | White | 6.0 | 28.5 | 4.0 | 120.0 | 2.0
20774219 | White | 6.0 | 33.0 | 7.0 | 127.0 | 3.2
20774325 | White | 6.0 | 34.0 | 6.5 | 140.0 | 2.0
20774363 | Grey | 6.0 | 34.0 | 7.0 | 150.0 | 2.0
20774486 | White | 6.0 | 34.0 | 6.5 | 159.0 | 2.0
20774745 | Grey | 5.0 | 11.5 | 2.0 | 18.0 | 1.0
20774868 | White | 5.0 | 11.5 | 2.5 | 20.0 | 1.0
Multi-function Round Tube Inserts are an ideal choice when aesthetics of your final product is not a priority. They fit tightly into round tubing, posts or poles and assist with preventing contamination, while offering safety, and a clean finish from sharp edges on freshly cut tubes. A practical and cost-effective range that includes thinner walls and a wide variety of sizes, fulfilling the essential requirement of tube insert protection. They are a practical choice, particularly if the appearance of your application is not a crucial factor. Easy to install by hand-pressing or with the use of a mallet, resulting in a quick and efficient assembly process. They can be used in machine building or any application where structural tubing is required. It is advised to choose a coloured option to improve the asthetical appearance of your finished project, as it will blend with the paint and provide a pleasing visual finish.
- Ideal when aesthetics is not a priority.
- Fits tightly into round tubing, preventing contamination and offering safety.
- Easy to install by hand-pressing or with a mallet.
Material
LDPE
Colour
Grey, White, Black
Series Code
SRILT
Technical Specifications / Characteristics
- Material: LDPE (Low Density Polyethylene)
- Colours available: Grey, White, Black
- Series Code: SRILT
- Wide variety of sizes available (see table below for examples)
- Easy installation by hand or mallet
- Provides protection and safety for tube ends
- Cost-effective and practical for non-aesthetic applications
Available Sizes (Selection)
Item Code | Colour | H1 (mm) | h (mm) | Max Wall Thickness (mm) | D (mm) | Min Wall Thickness (mm)
20774127 | White | 6.0 | 28.5 | 4.0 | 120.0 | 2.0
20774219 | White | 6.0 | 33.0 | 7.0 | 127.0 | 3.2
20774325 | White | 6.0 | 34.0 | 6.5 | 140.0 | 2.0
20774363 | Grey | 6.0 | 34.0 | 7.0 | 150.0 | 2.0
20774486 | White | 6.0 | 34.0 | 6.5 | 159.0 | 2.0
20774745 | Grey | 5.0 | 11.5 | 2.0 | 18.0 | 1.0
20774868 | White | 5.0 | 11.5 | 2.5 | 20.0 | 1.0
