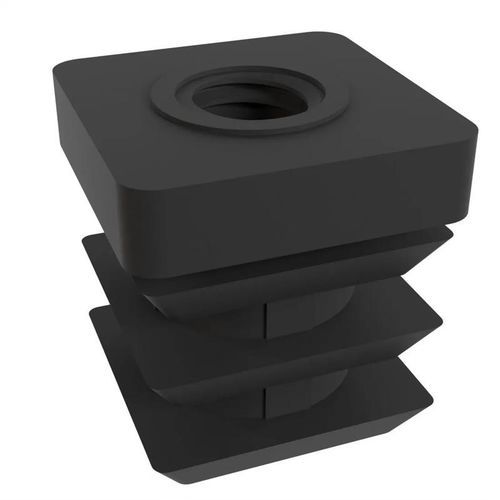

Threaded insert SR5437

polyethylenenylonchrome

Product Details
Threaded Tube Inserts are also known as Box Section Threaded Inserts or Threaded Fittings. These Square Threaded Tube Inserts allow external hardware, such as Adjustable Feet, to be used in conjunction with a square tube, pipe, or box section.

Our extensive Threaded Square Tube Inserts range features numbers materials, including; Nylon 6, High Density Polyethylene (HDPE), High Impact Polystyrene (HIPS), Cast Aluminium Alloy and Steel. With options suitable for heavy duty applications, offering a high load capacity, as well as standard duty applications.

• Metal Thread gives a smooth repeated adjustment
• Horizontal options available
• Threaded for a secure screw
• For use with; Adjustable Feet, Tilt Glides, Machine Feet, Castors, and other hardware...

Available Variants (examples)

• Thread Size: M6, M8, M10, M12, M16, M20
• Material: PA (Nylon), HIPS, HDPE, Cast Aluminium Alloy, Steel, HDPE With Metal Insert
• Colour: Black, Chrome, Grey, Natural
• Gauge: 1.0 mm, 1.2 mm, 1.3 mm, 1.5 mm, 2.0 mm, 2.5 mm
• AxA (Square size): 19.1 mm, 20.0 mm, 25.0 mm, 30.0 mm, 40.0 mm, 50.0 mm (also available in inches)

Typical Applications

• Furniture
• Machinery
• Adjustable feet
• Glides
• Castors

Characteristics / Technical Specifications

• Provides strong, secure threads in thin-walled materials
• Excellent pull-out resistance
• Available in a wide range of sizes and materials
• Suitable for heavy and standard duty applications
• Compatible with square tubes, pipes, and box sections
