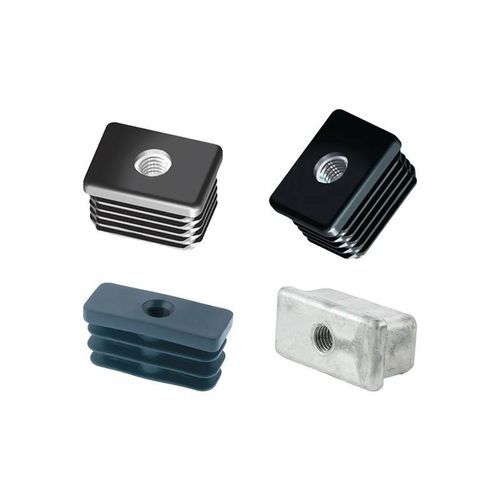

Threaded cap SR1570

rectangularaluminumsteel

Product Details
Rectangular Threaded Inserts are ideal for use with adjustable feet, tilt glides, and castors. Available in all-metal options or plastic inserts that feature a metal nut.

• Threaded Inserts and Glides come in a variety of options. Inserts are placed into the cavity at the end of pipes and tubes to provide a clean and neat finished appearance.

• Offers surface protection, and prevents the ingress of dirt and other contaminants.

• Suitable for standard or heavy duty applications.

Material and Colour
Material: HDPE, HDPE; Steel, PA, Aluminium, PE-HD
Colour: Black, Grey, Natural

Series Code
SR1570, SR1571, SR1567

Available Variants (Selection)

• Threaded Insert M8 30.0 mm 20.0 mm HDPE Black (Item Code: 498598)
• Threaded Insert M8 40.0 mm 30.0 mm HDPE Black (Item Code: 498602)
• Threaded Insert M10 50.0 mm 30.0 mm HDPE Black (Item Code: 498607)
• Threaded Insert M8 40.0 mm 20.0 mm HDPE Black (Item Code: 498600)
• Threaded Insert M10 30.0 mm 20.0 mm HDPE Black (Item Code: 498599)
• Threaded Insert M10 60.0 mm 30.0 mm HDPE Black (Item Code: 498609)
• Threaded Insert M8 60.0 mm 30.0 mm HDPE Black (Item Code: 498608)
• Threaded Insert M10 40.0 mm 30.0 mm HDPE Black (Item Code: 498603)
• Threaded Insert M10 40.0 mm 20.0 mm HDPE Black (Item Code: 498601)
• Threaded Insert M8 50.0 mm 30.0 mm HDPE Black (Item Code: 498604)
• Threaded Insert M8 50.0 mm 20.0 mm HDPE Black (Item Code: 498606)
• Threaded Insert M8 34.7 mm 20.0 mm HDPE Black (Item Code: 498613)
• Threaded Insert M10 50.0 mm 20.0 mm HDPE Black (Item Code: 498616)
• Threaded Insert M10 60.0 mm 30.0 mm Aluminium Alloy (Item Code: PZAT600300-25M1)
• Threaded Insert M10 50.0 mm 30.0 mm Aluminium Alloy (Item Code: PZAT500300-2M10)
• Threaded Insert M10 35.0 mm 20.0 mm HDPE Black (Item Code: 498610)
• Threaded Insert M10 35.0 mm 20.0 mm HDPE Black (Item Code: 498612)
• Threaded Insert M10 30.0 mm 20.0 mm HDPE Black (Item Code: 551736)
• Threaded Insert M10 20.0 mm 20.0 mm HDPE Black (Item Code: 551749)
• Threaded Insert M10 50.0 mm 25.0 mm Aluminium Alloy (Item Code: PZAT500250-2M10)

Technical Specifications / Characteristics

• Material: HDPE, PA, Aluminium Alloy, Steel, PE-HD
• Colour: Black, Grey, Natural
• Thread Size: M8, M10
• Length (L1): 20.0 mm, 25.0 mm, 30.0 mm, 34.7 mm, 35.0 mm, 40.0 mm, 50.0 mm, 60.0 mm (also available in inches: 0.787 in, 0.984 in, 1.181 in, 1.366 in, 1.378 in, 1.575 in, 1.969 in, 2.362 in)
• Max Panel Thickness (T1): 1.5 mm, 2.0 mm, 2.5 mm (also available in inches: 0.059 in, 0.079 in, 0.098 in)
• Min Panel Thickness (T2): 1.0 mm, 1.1 mm, 1.5 mm (also available in inches: 0.039 in, 0.043 in, 0.059 in)
• Type: 1, 3
• Series Code: SR1570, SR1571, SR1567
