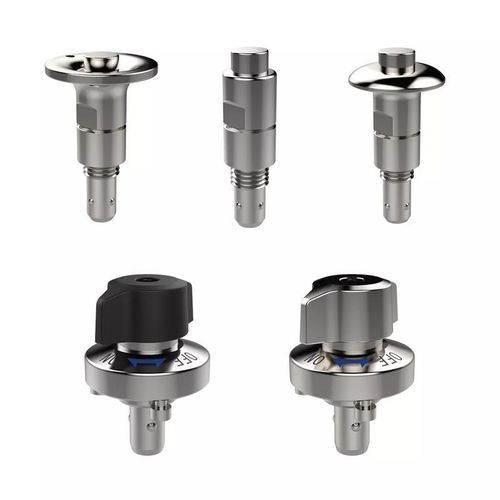

Interlock device SRW33912

Product Details
One-touch fasteners with ball locking are ideal for applications requiring quick and recurring changes over tooling or setups using a single touch. It is durable and provides a secure and robust fastening solution.

It is made up of three parts: a body, a spring, and a ball bearing. The spring holds the ball bearing in place, and when pressed, it disengages from the body, releasing the fastener. The ball bearing secures the fastener when it is pushed back into the body.

These are widely used in a wide range of industrial applications, including automotive, aerospace, and medical devices. They are resistant to temperatures of up to 180C and can be utilised for applications such as drive belts or machine coverings.

• It is durable and provides a secure and robust fastening solution.

• It is made up of three parts: a body, a spring, and a ball bearing.

• Used in a wide range of industrial applications, including automotive, aerospace, and medical devices.

Series Code
SR33918, SR33917, SR33916, SR33915, SR33914, SR33912, SR33910
Material
Stainless Steel, Steel

Caractéristiques / Spécifications techniques

• Button Types: Push Button, Recessed Button, T-Handle
• Available Materials: Stainless Steel, Steel
• Temperature resistance: up to 180°C
• Common applications: Automotive, Aerospace, Medical devices, Drive belts, Machine coverings
• Available sizes (d1): 6.0 mm, 10.0 mm
• Available button widths (d2): 12.0 mm, 14.0 mm, 16.0 mm, 18.0 mm
• Overall button widths (d3): 12.0 mm, 16.0 mm, 23.0 mm, 25.0 mm, 32.0 mm, 34.0 mm, 35.0 mm
