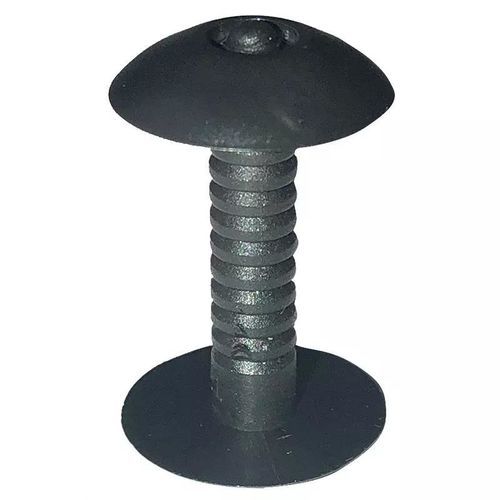

Dome head rivet SR1990

nylonblackwhite

Product Details
Our Snap fasteners feature a Nylon 6/6 option, an option made from Low Density Polyethylene (LDPE), and an LDPE option that has a Polypropylene (PP) clip. The rivet assembly includes a male clip and a female washer. The male clip is ratcheted into the female washer; the single assembly is used to mate two surfaces together. This rivet assembly is an ideal choice for corrugated panels.

• Quick and easy installation
• Colours include: Natural, Black, White and High Clarity (Transparent)

Series Code
SR1990

Available Colours

• Black
• Natural
• White
• Transparent (High Clarity)

Available Materials

• Nylon 6/6
• LDPE (Low Density Polyethylene)
• LDPE with Polypropylene (PP) clip

Typical Applications

• Corrugated panels

Technical Specifications / Characteristics

• Compatible Hole Diameter Range (Imperial): 0.039 - 0.197 in, 0.094 in, 0.122 in, 0.197 - 0.394 in, 0.197 in, 0.315 - 0.787 in
• Compatible Hole Diameter Range (Metric): 1.0 - 5.0 mm, 2.4 mm, 3.1 mm, 5.0 - 10.0 mm, 5.0 mm, 8.0 - 20.0 mm
• Maximum Compatible Panel Thickness (Imperial): 0.197 in, 0.291 in, 0.315 in, 0.374 in, 0.394 in, 0.63 in, 0.709 in, 0.866 in, 1.181 in, 1.575 in, 1.811 in, 2.189 in
• Maximum Compatible Panel Thickness (Metric): 5.0 mm, 7.4 mm, 8.0 mm, 9.5 mm, 10.0 mm, 16.0 mm, 18.0 mm, 22.0 mm, 30.0 mm, 40.0 mm, 46.0 mm, 55.6 mm
• Male Clip Shank Length (Imperial): 0.118 in, 0.374 in, 0.5 in, 0.551 in, 0.591 in, 0.866 in, 1.102 in, 1.732 in, 2.311 in
• Male Clip Shank Length (Metric): 3.0 mm, 9.5 mm, 12.7 mm, 14 mm, 14.0 mm, 15 mm, 15.0 mm, 22 mm, 22.0 mm, 28 mm, 28.0 mm, 44 mm, 44.0 mm, 58.7 mm
• Female Washer Stem Length (Imperial): 0.079 in, 0.118 in, 0.236 in, 0.315 in, 0.374 in, 0.472 in, 0.5 in, 2.311 in
• Female Washer Stem Length (Metric): 2.0 mm, 3.0 mm, 6 mm, 6.0 mm, 8.0 mm, 9.5 mm, 12 mm, 12.0 mm, 12.7 mm, 58.7 mm
