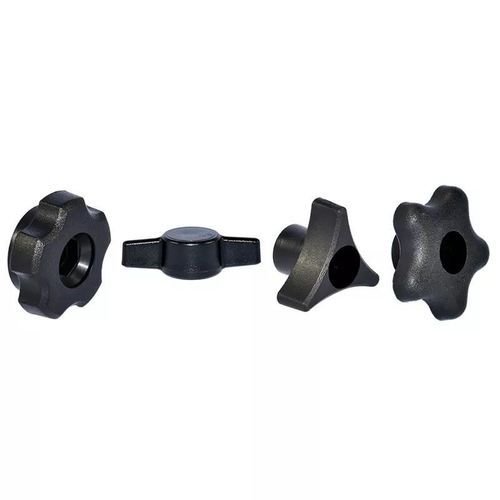

Threaded knob 10558959

starround

Self-assembly knobs are designed without internal fastenings and accept a wide range of threaded male and female inserts to suit various applications. They are compatible with standard fittings and hex socket head cap screws, and are available in many styles and sizes.

Main features :

• Push-fit design without internal fastenings allowing installation of male or female threaded inserts.
• Compatible with hex socket head cap screws and standard fittings.
• Wide range of styles and dimensions for different industrial applications.
• Ability to add various inserts as required (male/female, different thread types).
• 3D CAD models available for download (3D models indicated on the product page).

Dimensions and options available :

• Knob diameters (mm) :
  • 9.5 mm
  • 12.7 mm
  • 15.9 mm
  • 19.1 mm
  • 25.4 mm
  • 31.8 mm
  • 35.1 mm
  • 38.1 mm
  • 44.5 mm
  • 45.2 mm
  • 50.8 mm
  • 57.2 mm
  • 60.5 mm
  • 63.5 mm
• Knob heights (mm) :
  • 5.8 mm
  • 6.4 mm
  • 7.9 mm
  • 9.7 mm
  • 10.4 mm
  • 12.1 mm
  • 12.7 mm
  • 15 mm
  • 21.1 mm
  • 21.8 mm
  • 24.9 mm
  • 25.4 mm
  • 26.4 mm
  • 26.9 mm
  • 27.7 mm
  • 29.2 mm
  • 31.2 mm
  • 31.8 mm
• Hub diameters (mm) :
  • 9.1 mm
  • 9.5 mm
  • 10.7 mm
  • 13.2 mm
  • 15 mm
  • 16 mm
  • 19.1 mm
  • 20.3 mm
  • 21.6 mm
  • 22.4 mm
  • 24.9 mm
  • 25.1 mm
  • 31.8 mm
• Hub heights (mm) :
  • 1.5 mm
  • 1.8 mm
  • 2 mm
  • 2.5 mm
  • 3.6 mm
  • 4.3 mm
  • 5.1 mm
  • 7.1 mm
  • 9.1 mm
  • 10.4 mm
  • 11.9 mm
  • 12.4 mm
  • 12.7 mm
  • 13.7 mm
  • 15.7 mm
  • 17.8 mm
  • 19.1 mm
  • 19.8 mm

Series :

• SR1580

Characteristics / technical specifications :

• Type: self-assembly knobs for threaded inserts.
• Series referenced on the page: SR1580.
• Number of variants listed on the page: 36 results (different sizes, insert types and finishes).
• Availability: free samples indicated; many items shown as "In stock" (see product page for availability by reference).
• 3D CAD files: available to download from the product page.
