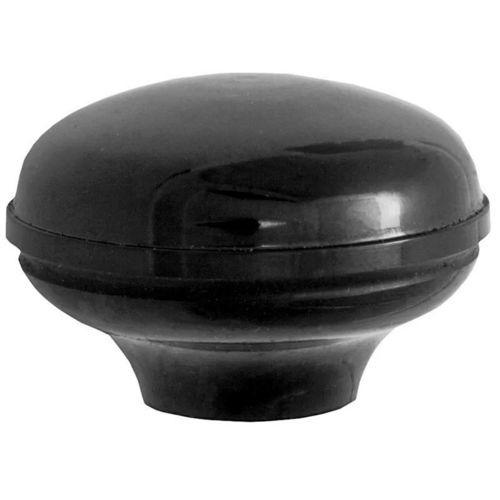

Threaded knob 10189269

ballmushroomphenolic resin

Molded plastic mushroom knobs providing a neat finished appearance and a comfortable grip, suitable for machine tools, jigs and accessories. The mushroom shape facilitates handling and ergonomic operation.

Series
SR6530

Available variants

• 10160886 — Mushroom knob 51.6 mm, thread M6, phenolic, black. Price displayed: €6.0373 (excl. VAT). Stock: 2. Main characteristics: knob height 38.1 mm; stem diameter 19.1 mm; thread length 11.0 mm; insert material: brass; finish: no finish.
• 10160916 — Mushroom knob 51.6 mm, thread M12, phenolic, black. Price displayed: €6.8778 (excl. VAT). Stock: 2. Main characteristics: knob height 38.1 mm; stem diameter 19.1 mm; thread length 17.0 mm; insert material: brass; finish: no finish.
• 10160893 — Mushroom knob 51.6 mm, thread M8, phenolic, black. Price displayed: €7.3493 (excl. VAT). Stock: 3. Main characteristics: knob height 38.1 mm; stem diameter 19.1 mm; thread length 11.0 mm; insert material: brass; finish: no finish.
• 10160909 — Mushroom knob 51.6 mm, thread M10, phenolic, black. Price displayed: €7.3698 (excl. VAT). Stock: 1. Main characteristics: knob height 38.1 mm; stem diameter 19.1 mm; thread length 13.0 mm; insert material: brass; finish: no finish.
• 10189269 — Spherical knob 50.0 mm, thread M12, PP, black (spherical variant listed in the group). Price displayed: €13.3455 - €28.0235 (excl. VAT). Availability: lead time on request. Main characteristics: knob height 64.0 mm; stem diameter 37.0 mm; thread length 20.0 mm; weight ≈79 g; material: PP; finish: matt.

Characteristics / technical specifications

• Main material: molded plastic (phenolic for most listed variants; one variant in PP available).
• Series: SR6530.
• Finishes: no finish or matt depending on variant.
• Colour: black.
• Typical applications: machine tools, jigs, accessories and other uses requiring a comfortable grip and a finished appearance.
• Thread options available: M6, M8, M10, M12.
• Formats and dimensions (examples by variant): knob diameters around 50–51.6 mm; typical knob heights 38.1 mm (larger 64.0 mm for the spherical version); stem diameters 19.1 mm (up to 37.0 mm for the larger version); thread lengths 11.0 mm, 13.0 mm, 17.0 mm, 20.0 mm depending on thread size.
• Insert material (when indicated): brass.
• Availability: several variants in stock (quantities shown per reference), some variants available on request with lead time.
