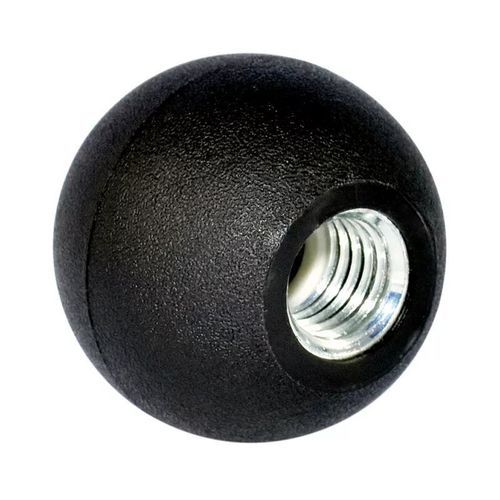

Threaded knob SR1535

non-threadedballphenolic resin

Short description

Spherical knobs provide an aesthetic and ergonomic option for manual control, clamping and shifting operations. They are offered in a wide range of diameters, materials, finishes and mounting modes suitable for many industrial and consumer applications.

Applications

• Lawn mowers
• Exercise equipment
• Machine controls
• Valves
• Faucets
• Levers
• Control, clamping and shifting operations

Main series

• SR1535
• SRN0000

Variants and options (excerpt from available filters)

• Diameters (metric examples): 12.0 mm, 15.0 mm, 25.0 mm, 30.0 mm, 31.8 mm, 35.1 mm, 36.0 mm, 37.3 mm, 38.1 mm, 40.9 mm, 41.4 mm, 47.8 mm
• Diameters (imperial examples): 0.472 in, 0.591 in, 0.984 in, 1.181 in, 1.250 in, 1.380 in, 1.417 in, 1.470 in, 1.500 in, 1.610 in, 1.630 in, 1.880 in
• Threading / mounting sizes (examples): Non Threaded, 3.2 mm, 4.0 mm, 4.8 mm, 5.0 mm, 6.0 mm, 6.4 mm, 8.0 mm, 9.5 mm, 10.0 mm, 19.1 mm, M4, M5, M6, M8, M10, M12, M14, M16, M10 x 1.5, M12 x 1.75, M6 x 1.0
• Finishes: Bright, Chrome, Polished, No finish, Clear zinc, Yellow zinc
• Materials: Stainless steel, Aluminium, Bakelite PA6 GF, LDPE, PP, Phenolic, Plastic, TPE, Thermoplastic
• Mounting modes: Insert, Threaded insert, Press-fit installation, Threaded, Threaded blind hole, Threaded stop nut

Example product variants (excerpts)

• Spherical knob 38.0 mm M8 Aluminium (ref. 10285381) — price range shown on page
• Spherical knob 16.0 mm 4.0 mm Stainless steel (ref. 10285428)
• Spherical knob 50.0 mm M12 Bakelite PA6 GF (ref. 10333402) — several units in stock
• Spherical knob 25.0 mm (Ø) LDPE (ref. 10101414)

Characteristics / technical specifications

• Product type: Spherical knobs for manual controls
• Referenced series: SR1535, SRN0000
• Wide range of diameters (mm and inches) and molded inserts
• Available threading: Non threaded and multiple metric threads (M4 to M16 and variants)
• Available finishes: Bright, Chrome, Polished, No finish, Clear zinc, Yellow zinc
• Common materials: Stainless steel, Aluminium, LDPE, PP, Bakelite PA6 GF, Phenolic, Plastic, TPE, Thermoplastic
• Mounting options: Insert, Threaded insert, Press-fit, Threaded and variants
• Intended use: Control, clamping and shifting on machines, sports equipment, valves/faucets, levers
