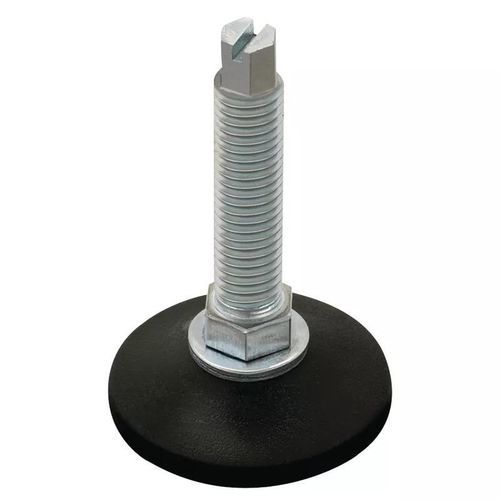

Machine tool foot SR5439

for rackspolypropyleneplastic

Leveling feet, standard non-articulated, designed to level machine tools, electronic racks and similar applications on uneven floors. They feature a rigid plastic base with a smooth, non-abrasive surface to protect floor coverings and ensure stable support.

Variants available

• Thread sizes: M6, M8, M10, M12
• Base diameters (metric): 25.0 mm, 30.0 mm, 38.0 mm, 48.0 mm
• Typical base height: 19.0 mm

Technical features / specifications

• Series: SR5439
• Intended use: standard non-articulated leveling feet for uneven surfaces (machine tools, electronic racks, etc.)
• Base: rigid plastic base with smooth, non-abrasive surface
• Base material (example variants): Polypropylene (PP)
• Color (example variants): Black
• Thread (example variants): M6, M8, M10, M12
• Available base diameters: 25.0 mm, 30.0 mm, 38.0 mm, 48.0 mm
• Base height (example variants): 19.0 mm
• Example references/variants on the product page: 10351369 (M8 threaded insert, 20.0 mm thread), 10259757 (non-articulated leveling foot Ø48.0 mm M10), 10259788 (non-articulated leveling foot Ø48.0 mm M12)
