Surface grinding machine ETLD-60150NC

workpiecegantry typewith magnetic clamping

Overview

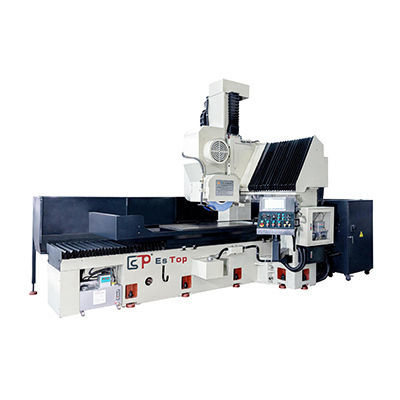

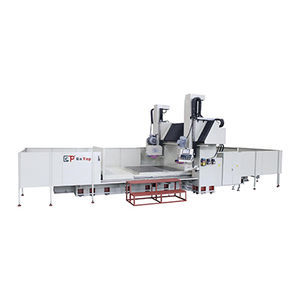

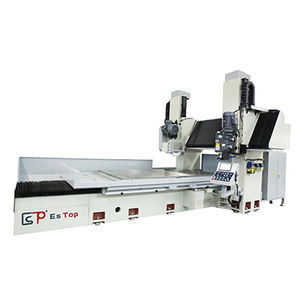

Double-column CNC gantry surface grinding machine ETLD-60150NC (Chevalier-like). Available models: ETLD-60150 and ETLD-60200. Designed for heavy-duty surface grinding of large workpieces in industrial production settings. Features a rigid double-column gantry, electromagnet worktable and multiple spindle motors for stable, precise material removal.

Technical data (main specifications)

• Model: ETLD-60150 / ETLD-60200
• Electromagnet table size (L×W): 1500×600 mm (ETLD-60150) ; 2000×600 mm (ETLD-60200)
• X-axis travel (left-right): 1700 mm (ETLD-60150) ; 2200 mm (ETLD-60200)
• Max center of wheel to table: 570 mm
• Max workpiece width between columns: 1000 mm
• Maximum table load capacity: 5000 kg
• Table feed speed: 5–30 m/min
• Table T-slot: 18×3 mm
• Grinding wheel max size: 500×203×50–75 mm
• Spindle motors: 20×4 HP
• Grinding wheel speed (50Hz/60Hz): 1450 RPM
• Machine height (to top): ≈3200 mm
• Floor space (L×W): 4450×2450 mm (ETLD-60150) ; 5450×2450 mm (ETLD-60200)
• Approx. weight: ≈8800 kg (ETLD-60150) ; ≈9200 kg (ETLD-60200)

Applications & advantages

• Surface grinding of large, heavy components for manufacturing and tooling
• Electromagnet table provides secure clamping for ferrous workpieces
• Double-column gantry ensures rigidity and repeatable flatness
• Suitable for heavy machinery shops, aerospace components and general industrial workshops
