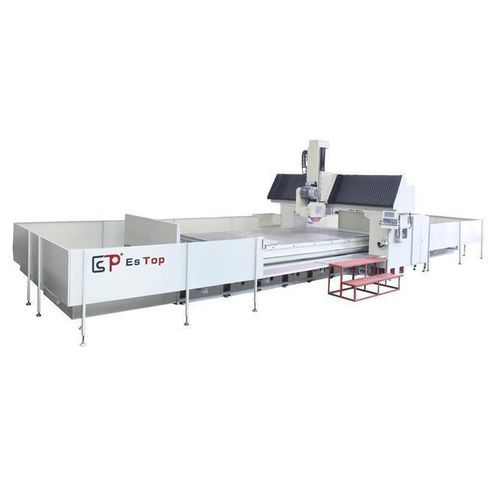

Surface grinding machine ETLD series

for large workpiecescolumn typewith magnetic chuck

Overview
The Double Column Type Surface Grinding Machine is powerful and suitable for large surface grinding. Designed and made as high-elasticity structure suitable for large surface grinding with more than 800mm of working width that cannot be ground by single column type. Box structure castings for extreme rigidity with no weight overhang. Turcite-B coated slide ways. Double cylinders and unique design of hydraulic system for table movement. Hardened & ground guideways of cross-rail and elevation ways. AC servo motors with precision ball-screws effect rapid elevation, automatic down-feed and up & down jogging for both horizontal and vertical spindles (optional). Double row roller bearings and angular contact ball bearings used for horizontal spindle, greased for life time. Modern 10-inch color LCD touch screen panel, simply touch the screen to set the grinding variables. Manual Pulse Generator (MPG) for both down feed and cross feed, including the infeed of diamond dresser. The crossfeed travel is set by the push-button on the console; different crossfeed increments can be set for rough and finish grinding separately.

Specifications table
Main item | Double Column Type Surface Grinding machine | Unit | ETLD-200800 | ETLD-250800
Worktable | Electromagnet table size(x*y) | mm | 8000x2000 | 8000x2500
Left and right Xaxis travel | | mm | 8200 | 8200
Max center of wheel to table | | mm | 650 | 650
Two column passed maximum workpiece size | | mm | 2560 3060 | 2560 3060
Worktable Maximum loading copacity | | kg | 10000 | 10000
Worktable feed speed | | m/min | 5-30 | 5-30
Table t-slot specification | | mm*n | 18x8 | 18x10
Grinding wheel | Grinding wheel size max | mm | 500 x 中203 x 50-75 | 500 x 中203 x 50-75
Spindle motor | | HP*P | 40x4 | 40x4
(50HZ/60HZ) Grinding wheel speed | | R.P.M | 1450 | 1450
Size | Height of machine（Move to top Height) | mm | ≈3500 | ≈3900
Layout Floor space（Length X width） | | mm | 18100x4400 | 18100x 5060
Weight | | kg | ≈68000 | ≈78000

Features

• Designed for large surface grinding (>800mm working width) not achievable by single column type machines.
• Box structure castings for extreme rigidity with no weight overhang.
• Turcite-B coated slide ways for smooth motion and wear resistance.
• Double hydraulic cylinders and unique hydraulic design for table movement; hardened and ground guideways on cross-rail and elevation ways.
• AC servo motors with precision ball-screws for rapid elevation, automatic down-feed and up & down jogging (optional for vertical spindle).
• Horizontal spindle uses double row roller bearings and angular contact ball bearings, greased for life.
• Modern 10-inch color LCD touch screen panel for setting grinding variables.
• Manual Pulse Generator (MPG) for down feed and cross feed including diamond dresser infeed control.
• Push-button crossfeed travel with separate increments for rough and finish grinding.

Caractéristiques / Spécifications techniques

• Model: ETLD-250800
• Electromagnet table size (x*y): 8000x2500 mm
• Left and right X-axis travel: 8200 mm
• Max center of wheel to table: 650 mm
• Two-column max workpiece size: 2560 3060 mm
• Worktable maximum loading capacity: 10000 kg
• Worktable feed speed: 5-30 m/min
• Table T-slot specification: 18x10 (mm*n)
• Grinding wheel max size: 500 x 中203 x 50-75 mm
• Spindle motor: 40x4 (HP*P)
• Grinding wheel speed (50HZ/60HZ): 1450 RPM
• Height of machine (move to top height): ≈3900 mm
• Layout floor space (L x W): 18100x5060 mm
• Weight: ≈78000 kg
