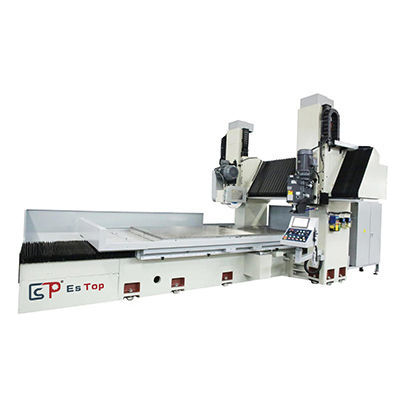

Surface grinding machine ETLS-1525NCworkpiecewith magnetic chucknumerical control
Add to favorites
Compare this product
Characteristics
- Type
- surface
- Applications
- workpiece
- Structure
- with magnetic chuck
- Control type
- NC, numerical control, digital
- Other characteristics
- high-precision, hydraulic, electric motor driven
- Spindle speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Distance between centers
620 mm, 630 mm
(24 in, 25 in)- X travel
2,200 mm, 2,700 mm
(86.61 in, 106.3 in)- Y travel
1,200 mm, 1,500 mm
(47.24 in, 59.06 in)- Grinding wheel diameter
350 mm, 500 mm
(14 in, 20 in)- Machine weight
20,000 kg, 21,000 kg, 21,500 kg, 27,000 kg
(44,092.45 lb, 46,297.08 lb, 47,399.39 lb, 59,524.81 lb)
Description
Structure
Movements
Spindle & Motor set
Lubrication
Hydraulic system
Control System (PNC type)
Specifications
- High-strength cast iron (HT300) with tempering treatment ensures rigidity, stability and long service life for the double-column frame.
- A fixed cross-beam integrates beam and columns into a rigid door-shaped structure to maintain machine solidity and alignment.
Movements
- Large twin V guides on the base and worktable provide steady table travel and long-term alignment stability.
- Vertical and longitudinal travels use high-precision ball screws driven by Baldor AC servo motors (PNC type) for accurate positioning and micron-level feed control.
- Grinding heads run on high-strength S55C steel rails with ultra-precision linear roller bearings for smooth cross travel and precise cutting.
- Vertical head angular positioning is driven by an AC servo on a worm-shaft transmission with numerical indexing to 0.1° for fast, accurate angle grinding.
Spindle & Motor set
- In-house assembled cartridge spindles use six super-precision CP4 angular contact bearings with permanent lubrication for low noise, low heat and high accuracy.
- High-torque Japanese V3-grade spindle motors are fitted on double-column models and dynamically balanced to minimize vibration and noise during extended operation.
- Motors are directly coupled to the spindle for optimal torque transmission and reduced vibration.
Lubrication
- Force-coverage lubrication (oil flows from upper to lower railways) prevents oil pulsation impact and ensures smooth sliding movements.
- A sensor monitors lubrication pressure and disables table movement if oil pressure is abnormal to protect the railways.
Hydraulic system
- Electronic control circuits manage a proportional hydraulic valve for precise hydraulic functions.
- Operator can adjust worktable speed directly from the control panel to optimize productivity.
- Hydraulic oil temperature is stabilized by a Habor coolant system to protect components during long operations.
Control System (PNC type)
- DSC-based NC control integrates machine functions and movements into a single panel for centralized operation.
- AC servo motors are used for both vertical and cross feeds under numeric control for repeatable precision.
- LCD display and digital panel inputs provide straightforward operation for various grinding applications.
- User-friendly design reduces the need for complex programming during typical production tasks.
Specifications
- Model: ETLS-1525NC
- Main item: Twin-head double-column surface and slideway grinder
- Electromagnet table size (x*y): 2000x1400/1500 mm or 2500x1200/1500 mm
- Left and right X axis travel: 2200 mm or 2700 mm
- Max center of wheel to table: 620 mm (variants: 620/630 mm)
- Two-column maximum workpiece size: 1780 mm or 1500/1930 mm
- Worktable maximum loading capacity: 5500 kg or 6000 kg
- Worktable feed speed: 5–30 m/min
- Table T-slot specification: 18x6 or 18x5 / 18x6 (mm × n)
- Surface grinding wheel max size: 500 × 203 × 50–75 mm
- Surface spindle motor: 25 × 4 (HP × P)
- Surface grinding wheel speed (50 Hz): 1450 RPM
- Slideway grinding wheel max size: 350 × 127 × 40 mm
- Slideway rotation angle: Left 90° / Right 90°
- Slideway spindle motor: 7.5 × 4 (HP × P)
- Positive/negative rotation (option): 0–1500 RPM
- Machine height (to top): ≈3500 mm or ≈3600 mm
- Layout floor space (L × W): 5950 × 4800 mm or 6800 × 4800/5000 mm
- Weight: ≈21000/21500 kg or ≈20000/27000 kg
