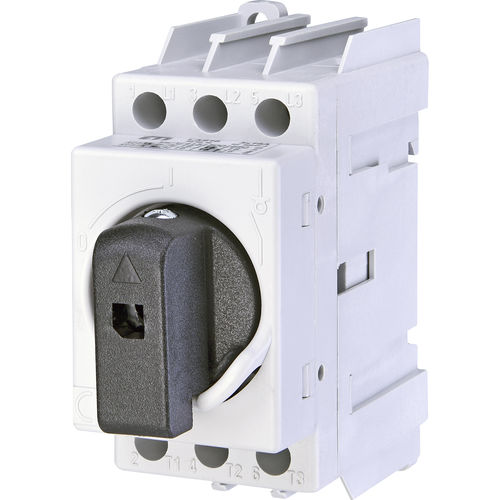

Rotary disconnect switch 004660012

AC3-poleDIN rail

Generalities The modular switch disconnectors of LAS series allow the breaking and the disconnecting on load of equipment on low voltage at nominal current from 16 A to 125A. Use The switch disconnectors of LAS series are commonly used for the following purposes: nmain switch nswitch for motors nsafety switch ndisconnector General characteristics nhigh breaking capacity (AC 22 A - AC 23 A) ndouble break contacts nhigh electrical and mechanical endurance nresistant to damp heat nIP20 degree of protection nmodular execution, basic mounting on 35 mm DIN rail and by screws, modular window 45mm Additional poles Fourth switched pole, solid neutral and earth pole. Operating mechanism Black (standard execution) or emergency direct handle padlockable in 0 position. Handle with and without door interlock handle, black or emergency handle padlock with up to three padlocks in 0 position. IP 65 degree of protection on door interlock handle.
