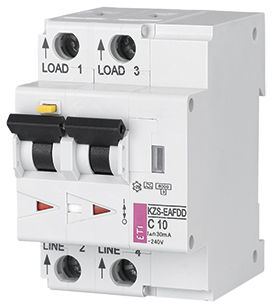

Thermal circuit breaker AFDD
arc protection2-poleresidual current

thermal circuit breaker
thermal circuit breaker
Add to favorites
Compare this product


Characteristics

Type
thermal
Electrical characteristics
arc protection, 2-pole, residual current
Other characteristics
MCB, DIN rail
Primary current

Max.: 20 A

Min.: 10 A

Description

Eti is launching new product called AFDD - Arc fault Detection Device. It is fully combined with residual current circuit breaker (RCCB) and miniature circuit breaker (MCB). Main purpose of the product is that it detects and quenches arc faults in final circuits. Features: - Electric fire protective device acc. to IEC/EN-62606 - Detects and quenches arc faults in final circuits - Fully combined with residual current circuit breaker (RCCB) and miniature circuit breaker (MCB) - 2-pole: Both clearances between open contacts are protected - Variable installation of N either left or right - Rated currents from 10 to 20 A - Contact position indicator red – green - Tripped indication: MCB, RCCB or AFDD - LED indication for arc faults - Permanent self-monitoring - Overvoltage and overheat monitoring - Guide for secure terminal connection - 3-position DIN rail clip, permits removal from existing busbar system - 30 mA rated residual currents - Tripping characteristics B, C - Rated breaking capacity up to 10 kA

Catalogs

No catalogs are available for this product.

See all of ETI‘s catalogs
