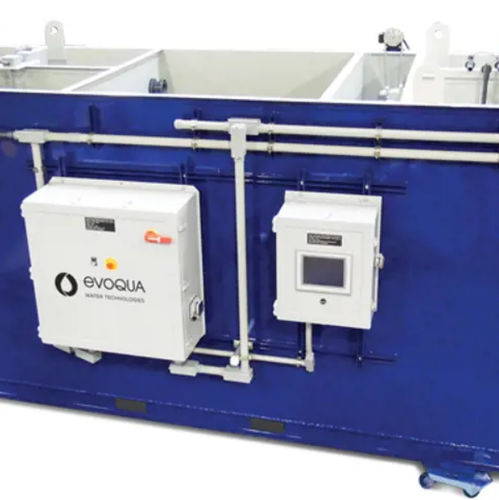

Chemical pretreatment chamber TotalTreat®

Overview
Compact skid-mounted system for continuous-flow chemical precipitation designed for industrial wastewater treatment. The TotalTreat® CPS integrates two chemical reaction chambers, a flocculation chamber, a 60° inclined tube/plate separator for solids separation, two sludge thickening chambers, and an effluent sampling/pumping chamber on a single skid.

Operation & Integration
The TotalTreat® CPS is suitable for standalone operation or integration into larger treatment trains. Process chemistry is selected to match the waste stream characteristics to optimize solids removal and downstream dewatering. The skid layout simplifies on-site installation and connection to upstream and downstream equipment.

Features

• Dual sludge thickening chambers to improve filter press feed and dewatering consistency
• 60° inclined plate/tube settling modules for efficient clarification and solids capture
• Integral access platforms for safe operator inspection and maintenance
• Epoxy-coated carbon steel construction for enhanced corrosion resistance

Technical specifications

• Compact skid-mounted design for continuous-flow chemical precipitation
• Two chemical reaction chambers
• Included flocculation chamber
• 60° inclined tube/plate separator for solids separation
• Two sludge thickening chambers
• Effluent sampling and/or pumping chamber
• Integral operator access platforms
• Materials of construction: epoxy-coated carbon steel
• Operable as standalone unit or integrable into larger treatment systems
