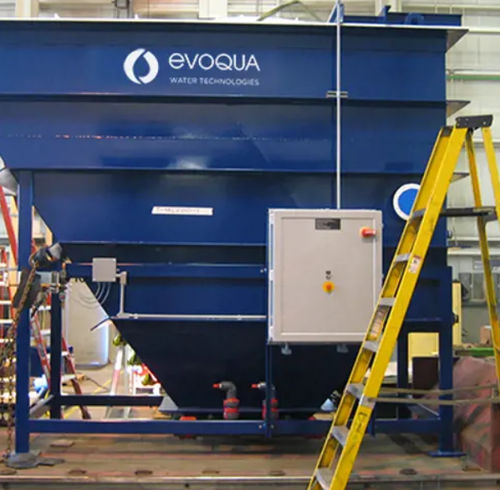

Plate clarifier Memclean

Overview
The Memclean MS (medium solids) and HS (high solids) lamella clarifiers are designed for polymer‑assisted flocculation and gravity separation of insoluble contaminants from industrial wastewater streams. They are suitable for applications with TSS loadings up to 1,500 mg/L.

Description
Wastewater receives polymer dosing and flocculation in dedicated rapid‑mix and flocculation chambers. After floc formation, flow passes by gravity through inclined plates (lamellae) where solids settle and separate from the clarified supernatant. Sludge is extracted from the clarifier bottom by an air‑operated diaphragm pump. Units are available in MS and HS variants to match solids loading and site requirements.

Features

• Lamella (inclined‑plate) settler design for compact footprint
• Rapid mix and flocculation chambers with controlled polymer dosing
• Coating options such as coal tar epoxy or other corrosion‑resistant finishes

Benefits

• Handles high solids loadings up to 1,500 mg/L (ppm) TSS
• PLC‑based control minimizing operator attention (typically <2 hours/day)
• Shop‑fabricated components enabling shorter on‑site installation timelines (typical delivery 16–18 weeks)
• Guaranteed effluent targets: metals <2 ppm and TSS <15 ppm
• Designed for integration with other wastewater treatment products and downstream processes

Technical specifications

• Clarifier type: lamella (inclined‑plate) style settlers
• Variants: MS (medium solids) and HS (high solids)
• Maximum solids handling: up to 1,500 mg/L (ppm) TSS
• Process upstream: polymer addition and flocculation prior to inclined plates
• Sludge removal: air‑operated diaphragm pump from clarifier bottom
• Coating options: coal tar epoxy or other resistant coatings
• Control: PLC‑based; typical operator attention <2 hours/day
• Fabrication/lead time: shop fabrication enabling delivery in approximately 16–18 weeks
• Guaranteed effluent: metals <2 ppm; TSS <15 ppm
• Integration: designed to integrate with other wastewater treatment products
