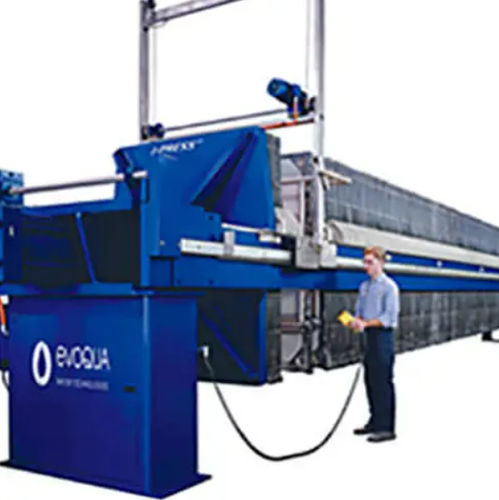

Plate and frame filter press J-Press®

frameside-beammotor-driven

Overview
High-capacity solution for industrial dewatering applications requiring large cake volumes and optional automation.

Description
The Large Capacity J-Press® Sidebar Filter Press is engineered for high-volume dewatering. It offers automation options including fully automatic plate shifting and cloth washing, integrates Evoqua’s MOCS filter press control system, and can be supplied with complete slurry processing and cake handling equipment. The frame is fabricated from ASTM-A36 carbon steel and finished for extended service life, with configurable features to match site requirements.

Features

• Five frame sizes: 1000 mm to 2000 mm, constructed from heavy-duty carbon steel plate and sheet, sandblasted and finished.
• Two standard operating pressures: 100 psig (7 bar) and 225 psig (16 bar).
• Cake holding capacity approximately 25 cu ft (1.42 m3) up to 600 cu ft (16.99 m3) depending on model and configuration.
• Process connections supplied pre-piped for simplified plug-and-play installation.
• Filter plate wetted parts in polypropylene; piping manifold options include PVC, carbon steel, FRP or stainless steel for corrosion resistance.

Benefits

• Modular sizes and configurable options enable application-specific, cost-efficient installations.
• Standard self-compensating electric/hydraulic closure system reduces operator intervention.
• Available automation supports unmanned operation and remote fault notification.

Models and Dry Cake Capacities

• J1000 — 25–60 cu ft dry cake capacity.
• J1200 — 40–125 cu ft dry cake capacity.
• J1500 — 75–250 cu ft dry cake capacity.
• J1520 — 150–350 cu ft dry cake capacity.
• J2000 — 300–600 cu ft dry cake capacity.

Technical specifications

• Series / Model name: J-Press®.
• Frame sizes: five sizes (1000 mm to 2000 mm).
• Construction: ASTM-A36 carbon steel plate and sheet, sandblasted and finished.
• Operating pressures: standard 100 psig (7 bar) and 225 psig (16 bar).
• Cake holding / capacity range: approximately 25 cu ft (1.42 m3) up to 600 cu ft (16.99 m3) depending on model.
• Filter plate wetted parts: polypropylene.
• Piping manifold materials available: PVC, carbon steel, FRP, or stainless steel.
• Process connections: supplied pre-piped for plug-and-play installation.
• Automation options: fully automatic plate shifting, cloth washing, MOCS filter press control system, ancillary slurry processing and cake handling integration.
• Closure system: self-compensating electric/hydraulic closure standard.
• Capability for remote monitoring and remote fault alerts; configurable for operator-free operation.
