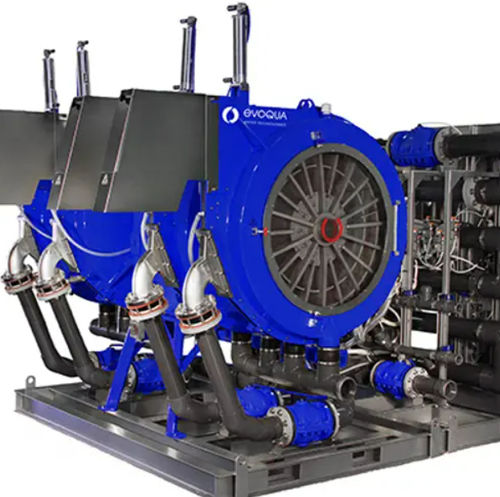

Rotary dewatering system RFP2.0 series

continuoussludgefor wastewater treatment

Summary
The Rotary Press provides cost-effective continuous dewatering of a wide range of sludges using pressure differential and frictional resistance at a rotational speed below 1 rpm. The compact, pre-assembled unit is designed for low maintenance and low energy consumption.

Key Benefits

• Simple operation
• Plug & play installation
• Small footprint
• Low maintenance
• Reduced labor costs
• Minimal part replacements
• Low operating costs and low odor

Description
The Rotary Press uses a low rotational speed (<1 rpm) to develop a pressure differential and frictional resistance that effectively dewaters various sludge types. Continuous operation and a simple mechanical design reduce wear and energy demand. The unit is fully enclosed and supplied pre-assembled to facilitate rapid installation and commissioning. Typical applications include municipal and industrial sludge dewatering where reliable solids capture and quality filtrate are required.

Features

• Pre-assembled delivery
• Expandable modular design
• No internal bearings
• Fully enclosed construction
• Continuous operation at less than 1 rpm
• Minimal operator interaction
• PLC and remote control capable
• Food-grade compliant options where specified

Model variants & typical specifications

• RFP2.0-24S: 24 in / 61 cm single channel – filtration area ~27.6 cm² – flow 5–15 GPM
• RFP2.0-36S: 36 in / 91.4 cm single channel – filtration area ~66.5 cm² – flow 20–35 GPM
• RFP2.0-36D: 36 in / 91.4 cm double channel – filtration area ~133.2 cm² – flow 40–70 GPM
• RFP2.0-48S: 48 in / 121.9 cm single channel – filtration area ~121.4 cm² – flow 35–65 GPM
• RFP2.0-48D: 48 in / 121.9 cm double channel – filtration area ~242.8 cm² – flow 70–130 GPM
• FP2.0-48Q: 48 in / 121.9 cm quadruple channel – filtration area ~485.7 cm² – flow 140–260 GPM

Technical specifications

• Continuous speed: < 1 rpm
• Operation principle: pressure differential combined with frictional resistance
• Design: pre-assembled, compact, fully enclosed
• Bearings: no internal bearings
• Control: PLC / remote control capability
• Compliance: food-grade compliant options (where specified)
• Typical flows and filtration areas: see model variants above
