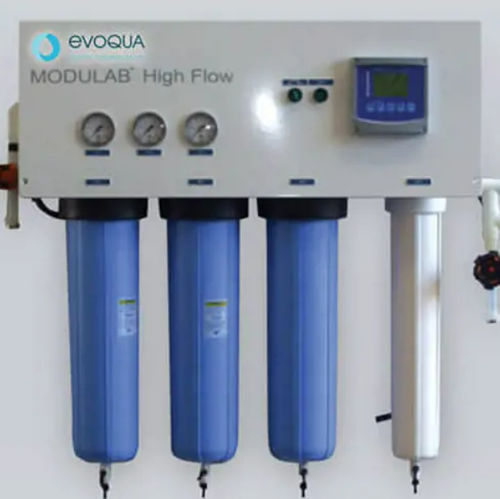

Laboratory ultra-pure water purification unit MODULAB®

for medical applicationscompactASTM I

Overview
MODULAB® high-flow modular polishing system by Evoqua Water Technologies supplies up to 14 liters per minute of ultra pure, Type 1 water at the point-of-use for clinical and laboratory analyzers.

Description
Compact modular unit designed to deliver CLRW grade water for a single chemistry or immunoassay clinical analyzer. MEDICA®-S and MEDICA®-R low-usage models provide reduced-capacity options (7 or 15 L/h). The MODULAB® system supports instantaneous demands up to 1.8 L/min from tap water feed and bulk delivery up to 14 L/min.

Features

• Modular polishing design for point-of-use delivery
• Delivers ultra pure, Type 1 quality water suitable for clinical applications
• High flow capacity: up to 14 L/min
• Compatible with dissolved oxygen specifications for purified water

Technical specifications

• Maximum flow rate: up to 14 liters per minute
• Water quality: Ultra pure, Type 1 (CLRW grade)
• System type: Modular polishing system for point-of-use application
• Compliance: Suitable for dissolved oxygen specification (purified water)
• Related low-usage models: MEDICA® S/R with capacities of 7 or 15 liters per hour
• Instantaneous demand (MEDICA® S/R): up to 1.8 liters per minute from tap water feed
