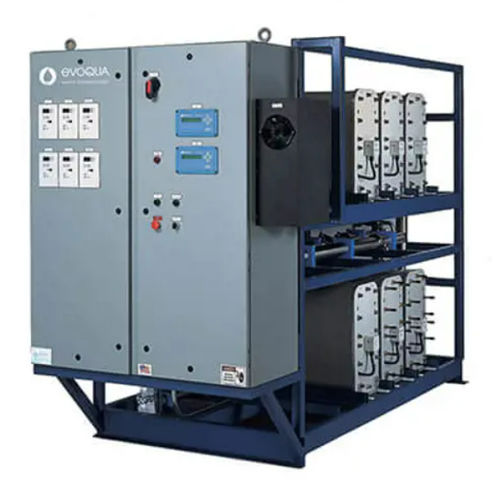

EDI electrodeionization plant CDI-LX®-X

Description
The CDI-LX®-X is a pre-engineered continuous electrodeionization (CDI) system using IONPURE® modules to produce high-resistivity water for industrial uses. Designed for power, microelectronics and general industry, the system delivers a continuous supply of water up to 18 megohm-cm with little or no chemical regeneration.

Key benefits

• Reduced or eliminated use of regeneration chemicals
• Lower chemical-handling risks and operating costs
• Steady, predictable water quality that does not exhaust
• Adjustable output quality to meet process requirements

Features

• Self-regenerating IONPURE® CDI-LX modules during operation
• Standard scope includes modules, power supplies, controllers, piping, sample valves, cleaning connections, and flow and quality monitoring instrumentation
• Remote I/O available as an option
• Systems fully factory acceptance tested (FAT)

Applications / Markets

• Power generation
• Microelectronics
• General industry processes

Specifications
Flow Rate, Maximum: gpm — 180
Flow Rate, Minimum: gpm — 2.5

Characteristics / technical specifications

• Model: CDI-LX®-X
• Brand: Evoqua Water Technologies / IONPURE® technology
• Continuous electrodeionization (CDI) process for high-resistivity water production
• Maximum output quality: up to 18 MΩ·cm
• Modules per system: single or multiple, up to 8 IONPURE® CDI-LX modules
• Included components: modules, power supplies, controllers, piping, sample valves, cleaning connections, flow and quality monitoring instrumentation
• Flow rate range: minimum 2.5 gpm, maximum 180 gpm
• Operation: little or no chemicals required; modules self-regenerate during operation
• Monitoring: flow and quality instrumentation standard; remote I/O optional
• Quality assurance: systems fully factory tested (FAT)
