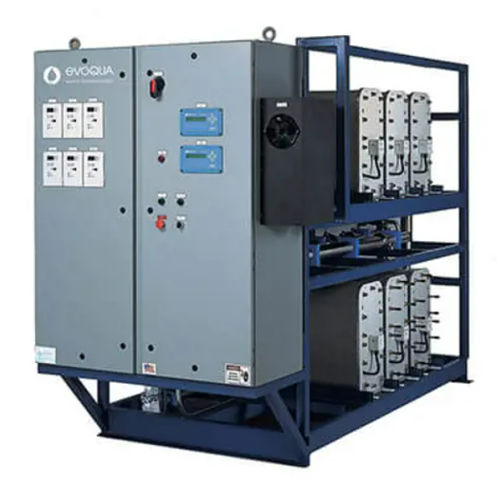

EDI electrodeionization plant CDI-LX®-H

Description
Electrodeionization technology produces high-purity water with little or no chemical usage. The CDI-LX®-H is a pre-engineered continuous electrodeionization system designed for pharmaceutical and other high-purity applications. Systems support hot-water sanitization up to 80°C for bacterial control. Standard configurations include single or multiple (up to 8) IONPURE® CDI-LX modules mounted on a frame with power supplies, controllers, piping, sample valves, cleaning connections, and flow and quality monitoring instrumentation. Continuous electrodeionization provides an uninterrupted supply of high-purity water (up to 18 megohm·cm) without the need for regeneration chemicals. Flow and quality monitoring instrumentation is standard; remote I/O is available as an option. Systems are factory tested (FAT) and supplied with validation documentation.

Key benefits

• Reduced or eliminated chemical usage
• Reduced chemical exposure risks and cost
• Predictable, constant water quality without exhaustion
• Water quality adjustable to meet specific requirements
• Bacterial control via hot-water sanitization up to 80°C

Features

• Modules continuously regenerate in operation
• Optional Hot Water Sanitization modules for pharmaceutical/high-purity environments where bacterial control is critical
• Pre-engineered frames accommodate up to 8 CDI-LX modules with power supplies and controllers
• Standard flow and quality monitoring; remote I/O optional
• Supplied with factory acceptance testing (FAT) and validation documentation

Technical specifications

• Maximum flow rate: 135 gpm
• Minimum flow rate: 2.5 gpm
• Product water resistivity: up to 18 megohm·cm
• Sanitization: hot-water sanitization up to 80°C
• Modular design: single or multiple modules (up to 8 IONPURE® CDI-LX modules)
• Includes power supplies, controllers, piping, sample valves and cleaning connections
• Standard instrumentation: flow and quality monitoring; remote I/O optional
• Chemical-free operation: no regeneration chemicals required
• Factory tested (FAT) and supplied with validation documentation
