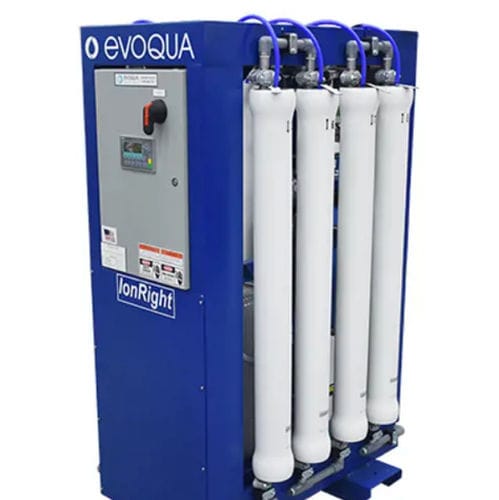

Process ultra-pure water purification unit IonRight®

deionizerreverse osmosis

Overview
Reverse osmosis combined with electrodeionization to produce high-purity product water. The IonRight® System is a packaged unit designed as a plug-and-play replacement for separate bed and mixed-bed Service Deionization (SDI) installations. The system’s proprietary configuration provides reliable operation, low maintenance requirements and mobility similar to SDI tanks. Evoqua offers the IonRight® System under the all-inclusive Water One® services program, which applies a fixed monthly charge for the contract term and eliminates tank exchanges to maximize uptime and reduce process interruptions.

Key benefits

• Delivers more continuous and consistent high-quality product water than traditional Service Deionization (SDI)
• No capital investment required under Water One® service agreements
• Fewer service visits and reduced process interruptions, lowering overall operating cost
• Eco-friendly operation reduces fuel and chemical consumption
• All-inclusive pricing with scheduled service visits by Evoqua qualified local technicians
• No on-site chemicals required due to off-site membrane and CDI® deionization cleaning

Features

• Available in two models with two flow rate options
• Produces product water at 1 µS/cm (1 MΩ·cm) or better
• Modular configuration for simplified maintenance and replacement of service items
• Integrated control panel and power supply
• Automatic on/off operation with instant-on functionality
• Potable water feed with carbon and softener pretreatment
• UL Listed / CSA Approved control panel
• Pre-engineered design; units can be added in parallel for higher flow requirements

Technical specifications

• Flow Rate, Maximum: 10 gpm (≈38 L/min)
• Flow Rate, Minimum: 4 gpm (≈15 L/min)
