Stainless steel air knife kit Model 2812SSDX Deluxe Standard

Description

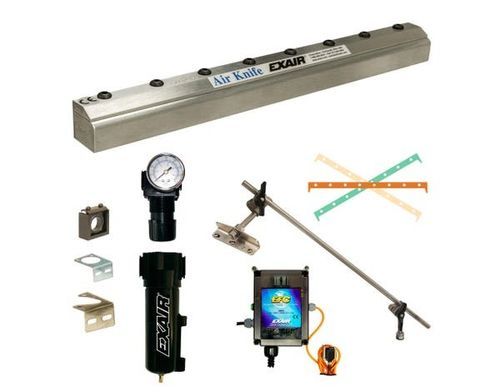

The Deluxe Full-Flow Air Knife Kit includes a Full-Flow Air Knife, EFC (Electronic Flow Control), Universal Air Knife Mounting System, shim set, filter separator and pressure regulator with coupler. The Full-Flow design delivers uniform airflow across the entire length while maintaining a compact footprint suitable for tight machine spaces. Kits are stocked in common lengths and offered in aluminum or Type 303 stainless steel.

Applications

• Part drying after wash
• Sheet and strip cleaning
• Conveyor and web cleaning/drying
• Part or component cooling
• Environmental separation and pre-paint blowoff
• Bag opening/filling and scrap removal operations

Advantages

• Up to 10 dBA noise reduction compared to standard units
• Reduced compressed air consumption with 30:1 air amplification
• Available in aluminum or Type 303 stainless steel
• Compact, no moving parts, compressed air inlets on each end
• Variable force and flow for process tuning
• Stock lengths up to 48 in (1219 mm)

Materials

• Aluminum - Aircraft-grade aluminum with plastic shim; suitable where corrosion is not an issue. Stainless steel screws included for damp locations. Max service temperature up to 180°F (82°C).
• Type 303 Stainless Steel - Good strength and suited to mildly corrosive environments. Max service temperature up to 800°F (427°C).

Product Configuration & Options
Configurable attributes: Length, Material, Included items (shim set, filter separator, pressure regulator), EFC Electronic Flow Control option, Plumbing Kit option, Air Knife Mounting System selection. Example SKU shown: P2803DX.

Models
The Full-Flow product family is available as:

• Full-Flow Air Knife only
• Full-Flow Air Knife Kit – includes shim set, filter separator and pressure regulator with coupler
• Deluxe Full-Flow Air Knife Kit – includes EFC, universal mounting system, shim set, filter separator and pressure regulator with coupler

Accessories

• Air Knife Plumbing Kits — for knives 24 in or longer; includes pressure gauge, nitrile/PVC hose and brass fittings
• Coupling Bracket Kits — join multiple knives; includes rigid plates and stainless steel screws
• Shim sets (plastic and stainless steel) for nozzle gap adjustment

Models / Systems (airflow length to model mapping)

• 3 in (76 mm): 2603 / 2603SS | Kit: 2803 / 2803SS | Deluxe Kit: 2803DX / 2803SSDX
• 6 in (152 mm): 2606 / 2606SS | Kit: 2806 / 2806SS | Deluxe Kit: 2806DX / 2806SSDX
• 9 in (229 mm): 2609 / 2609SS | Kit: 2809 / 2809SS | Deluxe Kit: 2809DX / 2809SSDX
• 12 in (305 mm): 2612 / 2612SS | Kit: 2812 / 2812SS | Deluxe Kit: 2812DX / 2812SSDX
• 18 in (457 mm): 2618 / 2618SS | Kit: 2818 / 2818SS | Deluxe Kit: 2818DX / 2818SSDX
• 24 in (610 mm): 2624 / 2624SS | Kit: 2824 / 2824SS | Deluxe Kit: 2824DX / 2824SSDX
• 30 in (762 mm): 2630 / 2630SS | Kit: 2830 / 2830SS | Deluxe Kit: 2830DX / 2830SSDX
• 36 in (914 mm): 2636 / 2636SS | Kit: 2836 / 2836SS | Deluxe Kit: 2836DX / 2836SSDX

Performance

• 20 PSIG / 1.4 BAR — 1.1 SCFM/in (31 SLPM/in); Velocity @ 6 in: 3,000 FPM (15.2 m/s); Sound @ 3 ft: 64 dBA; Force: 0.4 oz/in (11 g)
• 40 PSIG / 2.8 BAR — 1.8 SCFM/in (51 SLPM/in); Velocity @ 6 in: 5,000 FPM (25.4 m/s); Sound @ 3 ft: 72 dBA; Force: 1.0 oz/in (28 g)
• 60 PSIG / 4.1 BAR — 2.4 SCFM/in (68 SLPM/in); Velocity @ 6 in: 7,500 FPM (38.1 m/s); Sound @ 3 ft: 76 dBA; Force: 1.6 oz/in (45 g)
• 80 PSIG / 5.5 BAR — 3.1 SCFM/in (88 SLPM/in); Velocity @ 6 in: 10,000 FPM (50.8 m/s); Sound @ 3 ft: 80 dBA; Force: 2.3 oz/in (65 g)
• 100 PSIG / 6.9 BAR — 3.8 SCFM/in (108 SLPM/in); Velocity @ 6 in: 12,000 FPM (61.0 m/s); Sound @ 3 ft: 83 dBA; Force: 2.9 oz/in (82 g)

Technical specifications

• Product name: Deluxe Full-Flow Air Knife Kit
• Brand: EXAIR
• Example SKU on page: P2803DX
• Included in Deluxe kit: Full-Flow Air Knife, EFC, Universal Air Knife Mounting System, shim set, filter separator, pressure regulator with coupler
• Stock lengths: 3 in to 36 in (stock up to 48 in / 1219 mm referenced)
• Materials: Aluminum (aircraft grade) and Type 303 Stainless Steel
• Max service temperature: Aluminum up to 180°F (82°C); Type 303 SS up to 800°F (427°C)
• Air amplification ratio: 30:1 (measured at 6 in / 152 mm)
• Design: compact footprint, no moving parts, compressed air inlets on each end, stainless steel screws for corrosion resistance
• Note: 12 in (305 mm) Full-Flow Air Knife tested with 0.002 in (0.05 mm) shim installed
