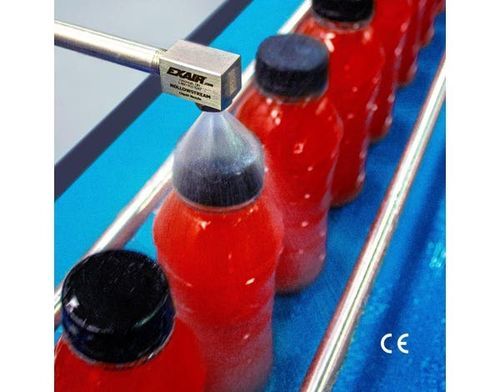

Hollow-cone nozzle Model HL1003SS

for liquidsatomizingstainless steel

Description
EXAIR’s 1/8 NPT HollowStream™ Cone Nozzles, with a circular ring spray pattern, are among the most common type of spray nozzles. Hollow cone spray nozzles are applied to solve cooling, cleaning, washing, rinsing and dust suppression applications throughout industry with less liquid than their full cone counterparts. Their design is vaneless, which creates wide open internal features to resist clogging and can work well with liquids containing particulate. They produce a uniform distribution in a hollow cone ring pattern. Their right-angle design is compact and operates up to 250 PSI liquid pressure. They are commonly used with liquids like water, rinse aids or detergents but are also effective with chemicals, pesticides and herbicides. Adjustment of the liquid flow rate is done by varying liquid pressure.

Applications

• Cooling, coating
• Quenching
• Dust suppression
• Washing, rinsing
• Foam breaking
• Slurry spraying
• Sanitizing, degreasing
• Lubricating

Advantages

• Lower liquid flow rates compared to full cone counterparts
• Increases surface area coverage
• Increases liquid volume on target
• All stainless steel construction
• Compact footprint and versatile

Materials
Type 303 Stainless Steel - All of EXAIR's Liquid Atomizing Nozzles are constructed with Type 303 stainless steel, resistant to high temperatures and corrosive environments; designed for environments with a maximum operating temperature of 800°F (426°C).

Spray Dimensions (HollowStream Cone, 1/8 NPT models)
How FullStream and HollowStream Cone Nozzles Work: atomizing fluid introduced to vortex chamber creates swirling action; geometry of liquid cap produces full or hollow cone pattern at controlled spray angle.

Spray Dimensions - HL80X5SS (1/8 NPT):
7 PSI: angle = X, Width A = X, B = X, C = X
20 PSI: angle = 20°, Width A = 0.4 in, B = 1.1 in, C = 2.1 in
60 PSI: angle = 55°, Width A = 1.0 in, B = 3.1 in, C = 6.2 in

Spray Dimensions - HL8001SS (1/8 NPT):
7 PSI: angle = 23°, Width A = X, B = X, C = X
20 PSI: angle = 50°, Width A = 0.9 in, B = 2.8 in, C = 5.6 in
60 PSI: angle = 60°, Width A = 1.2 in, B = 3.5 in, C = 6.9 in

Spray Dimensions - HL8002SS (1/8 NPT):
7 PSI: angle = 50°, Width A = 0.9 in, B = 2.8 in, C = 5.6 in
20 PSI: angle = 53°, Width A = 1.0 in, B = 3.0 in, C = 6.0 in
60 PSI: angle = 60°, Width A = 1.2 in, B = 3.5 in, C = 6.9 in

Spray Dimensions - HL8003SS (1/8 NPT):
7 PSI: angle = 50°, Width A = 0.9 in, B = 2.8 in, C = 5.6 in
20 PSI: angle = 53°, Width A = 1.0 in, B = 3.0 in, C = 6.0 in
60 PSI: angle = 60°, Width A = 1.2 in, B = 3.5 in, C = 6.9 in

Spray Dimensions - HL8005SS (1/8 NPT):
7 PSI: angle = 40°, Width A = 0.7 in, B = 2.2 in, C = 4.4 in
20 PSI: angle = 57°, Width A = 1.1 in, B = 3.3 in, C = 6.5 in
60 PSI: angle = 70°, Width A = 1.4 in, B = 4.2 in, C = 8.4 in

Spray Dimensions - HL8008SS (1/8 NPT):
7 PSI: angle = 53°, Width A = 1.0 in, B = 3.0 in, C = 6.0 in
20 PSI: angle = 60°, Width A = 1.2 in, B = 3.5 in, C = 6.9 in
60 PSI: angle = 62°, Width A = 1.2 in, B = 3.6 in, C = 7.2 in

Spray Dimensions - HL8010SS (1/8 NPT):
7 PSI: angle = 60°, Width A = 1.2 in, B = 3.5 in, C = 6.9 in
20 PSI: angle = 65°, Width A = 1.3 in, B = 3.8 in, C = 7.6 in
60 PSI: angle = 70°, Width A = 1.4 in, B = 4.2 in, C = 8.4 in

Dimensions & Performance — Flow Rates (HollowStream, 1/8 NPT models)
Flow Rate values are provided as GPM (LPM) at specified liquid pressures. Selected model values below:

HL80X5SS (Capacity 0.05):
3 PSI: 0.033 GPM (0.125 LPM)
5 PSI: 0.040 GPM (0.151 LPM)
7 PSI: 0.046 GPM (0.174 LPM)
10 PSI: 0.050 GPM (0.189 LPM)
20 PSI: 0.072 GPM (0.273 LPM)
40 PSI: 0.100 GPM (0.379 LPM)
60 PSI: 0.156 GPM (0.591 LPM)

HL8001SS (Capacity 1):
3 PSI: 0.067 GPM (0.254 LPM)
5 PSI: 0.083 GPM (0.314 LPM)
7 PSI: 0.094 GPM (0.356 LPM)
10 PSI: 0.100 GPM (0.379 LPM)
20 PSI: 0.153 GPM (0.579 LPM)
40 PSI: 0.206 GPM (0.780 LPM)
60 PSI: 0.239 GPM (0.905 LPM)

HL8002SS (Capacity 2):
3 PSI: 0.12 GPM (0.44 LPM)
5 PSI: 0.15 GPM (0.57 LPM)
7 PSI: 0.18 GPM (0.66 LPM)
10 PSI: 0.20 GPM (0.76 LPM)
20 PSI: 0.25 GPM (0.93 LPM)
40 PSI: 0.35 GPM (1.31 LPM)
60 PSI: 0.42 GPM (1.60 LPM)

HL8003SS (Capacity 3):
3 PSI: 0.20 GPM (0.76 LPM)
5 PSI: 0.22 GPM (0.82 LPM)
7 PSI: 0.26 GPM (0.98 LPM)
10 PSI: 0.30 GPM (1.14 LPM)
20 PSI: 0.43 GPM (1.62 LPM)
40 PSI: 0.61 GPM (2.32 LPM)
60 PSI: 0.75 GPM (2.84 LPM)

HL8005SS (Capacity 5):
3 PSI: 0.25 GPM (0.95 LPM)
5 PSI: 0.33 GPM (1.25 LPM)
7 PSI: 0.39 GPM (1.49 LPM)
10 PSI: 0.48 GPM (1.82 LPM)
20 PSI: 0.67 GPM (2.54 LPM)
40 PSI: 0.95 GPM (3.61 LPM)
60 PSI: 1.18 GPM (4.46 LPM)

HL8008SS (Capacity 8):
3 PSI: 0.45 GPM (1.70 LPM)
5 PSI: 0.55 GPM (2.08 LPM)
7 PSI: 0.67 GPM (2.54 LPM)
10 PSI: 0.80 GPM (3.03 LPM)
20 PSI: 1.18 GPM (4.47 LPM)
40 PSI: 1.62 GPM (6.13 LPM)
60 PSI: 1.90 GPM (7.19 LPM)

HL8010SS (Capacity 10):
3 PSI: 0.48 GPM (1.82 LPM)
5 PSI: 0.64 GPM (2.42 LPM)
7 PSI: 0.79 GPM (2.99 LPM)
10 PSI: 0.96 GPM (3.63 LPM)
20 PSI: 1.31 GPM (4.96 LPM)
40 PSI: 1.85 GPM (7.00 LPM)
60 PSI: 2.10 GPM (7.95 LPM)

Caractéristiques / Spécifications techniques

• Denomination commerciale: HollowStream™
• Model(s) / SKU shown on page: PHL80X5SS (product SKU), referenced model codes: HL80X5SS, HL8001SS, HL8002SS, HL8003SS, HL8005SS, HL8008SS, HL8010SS
• Inlet connection: 1/8 NPT (for the 1/8 NPT models)
• Maximum recommended liquid pressure: up to 250 PSI
• Spray pattern: Hollow cone (circular ring)
• Design: vaneless vortex chamber to resist clogging; right-angle compact body
• Construction material: Type 303 Stainless Steel
• Maximum operating temperature: 800°F (426°C)
• Typical liquids: water, rinse aids, detergents, chemicals, pesticides, herbicides, slurries
• Flow control method: adjust liquid pressure to vary flow rate
• Max free passage (examples by model): HL80X5SS 0.035 in; HL8001SS 0.063 in; HL8002SS 0.078 in; HL8003SS 0.094 in; HL8005SS 0.125 in; HL8008SS 0.156 in; HL8010SS 0.159 in
