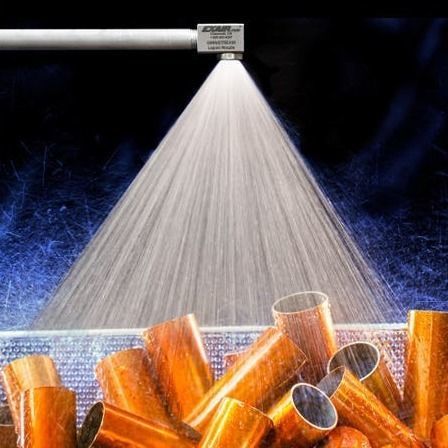

Atomizing nozzle Model FL1010SS

for liquidsfull-conestainless steel

Overview
EXAIR's 1/4 NPT OmniStream™ Cone nozzles generate a uniform full-cone spray for liquid atomization. Vaneless, with wide internal passages to resist clogging, they suit liquids containing particulates and provide a compact right-angle footprint. Designed for use with water, rinse aids, detergents, chemicals, pesticides and herbicides. Liquid flow is regulated by liquid pressure up to 250 PSI.

Applications

• Cooling
• Coating
• Quenching
• Dust suppression
• Washing and rinsing
• Foam breaking
• Slurry spraying
• Sanitizing and degreasing
• Lubricating

Advantages

• High liquid flow rates
• Improved surface coverage due to full-cone distribution
• Greater liquid volume delivered to target
• All Type 303 stainless steel construction for corrosion resistance
• Compact right-angle design enabling versatile installation

Materials
Type 303 stainless steel construction. Maximum recommended operating temperature: 800°F (426°C).

How it works
Liquid enters the nozzle body and forms a vortex in the chamber. The vortex and the precisely machined orifice break surface tension to produce a uniform full-cone spray at a controlled angle and droplet distribution.

Spray dimensions — full cone pattern (selected data)
OmniStream Cone (1/4 NPT models) — example widths A / B / C by model and pressure:
FL1008SS — 7 PSI: A 5.7 in / B 8.6 in / C 14.3 in; 20 PSI: A 7.4 in / B 11.0 in / C 18.4 in; 60 PSI: A 8.4 in / B 12.6 in / C 21.0 in
FL1010SS — 7 PSI: A 6.8 in / B 10.2 in / C 17.0 in; 20 PSI: A 8.7 in / B 13.1 in / C 21.8 in; 60 PSI: A 10.1 in / B 15.1 in / C 25.2 in
FL1011SS — 7 PSI: A 6.8 in / B 10.2 in / C 17.0 in; 20 PSI: A 8.7 in / B 13.1 in / C 21.8 in; 60 PSI: A 10.1 in / B 15.1 in / C 25.2 in

Notes
Right-angle compact body. Vaneless design reduces clogging and is suitable for liquids with particulates.

Technical specifications

• Commercial name: OmniStream™ Cone
• Model family / example models: FL1008SS, FL1010SS, FL1011SS
• Product SKU (page primary): PFL1008SS
• Inlet connection: 1/4 NPT
• Maximum recommended liquid pressure: up to 250 PSI
• Materials: Type 303 stainless steel
• Maximum operating temperature: 800°F (426°C)
• Design: Vaneless vortex chamber producing full-cone, uniform round pattern; right-angle body
• Capacity (by model as shown on page): FL1008SS = 8; FL1010SS = 10; FL1011SS = 11
• Max free passage (orifice sizes): FL1008SS = 0.109 in; FL1010SS = 0.125 in; FL1011SS = 0.144 in
• Flow rate (GPM / LPM) by model and liquid pressure (selected values):
  3 PSI — FL1008SS: 0.50 GPM / 1.89 LPM; FL1010SS: 0.48 GPM / 1.82 LPM; FL1011SS: 0.62 GPM / 2.35 LPM
  5 PSI — FL1008SS: 0.60 GPM / 2.27 LPM; FL1010SS: 0.67 GPM / 2.54 LPM; FL1011SS: 0.85 GPM / 3.22 LPM
  7 PSI — FL1008SS: 0.70 GPM / 2.65 LPM; FL1010SS: 0.83 GPM / 3.14 LPM; FL1011SS: 0.96 GPM / 3.63 LPM
  10 PSI — FL1008SS: 0.80 GPM / 3.03 LPM; FL1010SS: 1.00 GPM / 3.79 LPM; FL1011SS: 1.10 GPM / 4.16 LPM
  20 PSI — FL1008SS: 1.15 GPM / 4.35 LPM; FL1010SS: 1.34 GPM / 5.07 LPM; FL1011SS: 1.51 GPM / 5.72 LPM
  40 PSI — FL1008SS: 1.55 GPM / 5.87 LPM; FL1010SS: 1.88 GPM / 7.12 LPM; FL1011SS: 2.21 GPM / 8.36 LPM
  60 PSI — FL1008SS: 1.80 GPM / 6.81 LPM; FL1010SS: 2.36 GPM / 8.93 LPM; FL1011SS: 2.66 GPM / 10.07 LPM
• Typical liquids: water, rinse aids, detergents, chemicals, pesticides, herbicides
