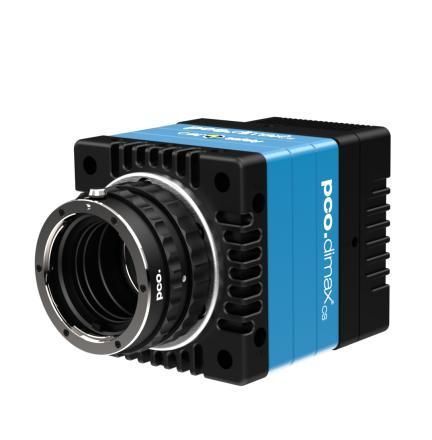

Digital camera pco.dimax cs1

for microscopesfor the automotive industryfor research and development

Overview
The pco.dimax cs1 camera provides excellent light sensitivity and outstanding image quality for precise analysis and measurements. This high-speed camera delivers frame rates up to 3086 fps at a full resolution of 1296 x 1024 pixels and supports short exposure times for motion capture in demanding test environments.

Series information
The pco.dimax cs series is engineered for harsh and demanding applications such as vehicle crash tests and microscopy experiments. Its compact, lightweight and ruggedized design allows flexible mounting for onboard or off-board use within constrained test setups.

Key features

• High sensitivity and superior image quality for measurement and analysis
• Frame rates up to 3086 fps at 1296 x 1024 pixels
• Intuitive control software with easy playback and export of slow-motion sequences
• Multiple lens mounts with electronic lens control (F-mount, C-mount)
• HD-SDI video output and GigE data interface
• Automatic image calibration
• Compact, lightweight, ruggedized design suitable for onboard and off-board mounting

Technical specifications

• Resolution: 1296 x 1024 pixels
• Pixel size: 11.0 x 11.0 µm
• Peak quantum efficiency: 50%
• Dynamic range A/D: 12 bit
• Readout noise: 22 e- rms
• Maximum frame rate: 3086 fps
• Exposure time range: 1.5 µs – 40 ms
• Region of interest (ROI): 24 x 4 pixels (centered)
• Optical input: F-mount, C-mount (electronic lens control)
• Data interface: GigE; Video output: HD-SDI
