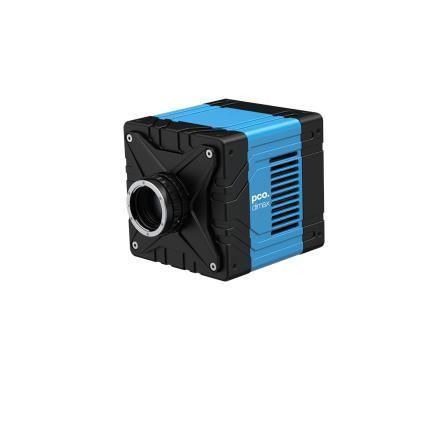

Digital camera pco.dimax 3.6 ST

area scan2Dindustrial

Overview
The pco.dimax 3.6 ST CLHS is a high-speed streaming camera engineered for continuous acquisition at full 3.6 MP resolution and over 2000 frames per second. Its Camera Link HS (CLHS FOL) interface delivers real-time, uncompressed 10-bit data transfer over 8×10 Gb optical fiber. The streaming architecture removes internal memory constraints, enabling virtually unlimited recording times and immediate access to captured image data. Part number: 85108025001

Key details

• Continuous high-speed streaming at full 1984 × 1808 resolution
• Camera Link HS (CLHS FOL) interface for real-time, uncompressed 10-bit transfer over 8×10 Gb optical fiber
• Streaming removes internal memory limits for virtually unlimited recording time and immediate access to image data

Features

• Large 11 µm pixels for high sensitivity
• Global shutter for distortion-free capture of dynamic processes
• High fullwell capacity (60,000 e-) for accurate signal reproduction
• Thermally stabilized image sensor for consistent, reliable imaging
• Available in air-cooled or liquid-cooled versions; liquid-cooled option enables vibration-free operation
• Suitable for material research, aerospace testing, industrial inspection and scientific imaging

Documentation (available titles)

• pco.dimax 3.6 ST High-speed Camera Datasheet
• Extended High-Speed Recording with d.fine Optical Quality Flyer
• pco.dimax 3.6 ST series Quick Start Guide
• pco.dimax 3.6 CLHS Manual

Technical specifications

• Resolution: 1984 × 1808 pixels
• Sensor size: 21.8 mm × 19.8 mm
• Diagonal: 29.5 mm
• Pixel size: 11 µm × 11 µm
• Shutter mode: Global shutter
• Frame rate: 2166 fps
• Fullwell capacity: 60,000 e-
• QE (sensor): 68% @ 620 nm
• Spectral range: 340 nm – 1100 nm
• Readout noise: < 65 e-
• Dark current: < 250 e-/s/pixel @ 25 °C
• Exposure time: 10 µs to 10 ms
• Dynamic range A/D: 10 bit
• Data interface: Camera Link HS (FOL)
• Dimensions: 145 mm × 145 mm × 141 mm
