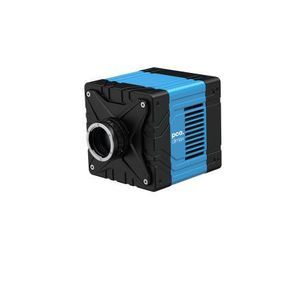

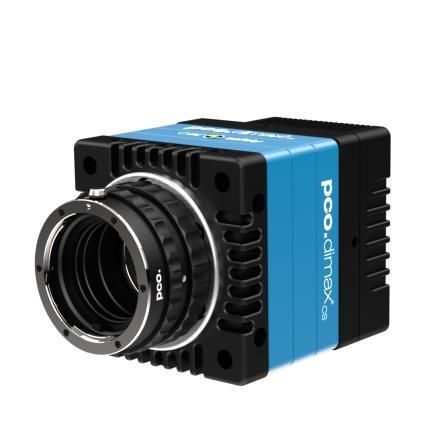

Digital camera pco.dimax cs3

for microscopesfor research and developmentfor the automotive industry

Product Overview
The pco.dimax cs3 is a high-speed camera designed for quantitative imaging and time-resolved analysis. Its 1920 x 1440 sensor with 11.0 x 11.0 μm pixels provides high light sensitivity and supports frame rates up to 1603 fps at full resolution. The camera features electronic lens control options, HD-SDI video output and a GigE data interface for straightforward integration into measurement systems and test benches.

Design and Applications
The pco.dimax cs series is engineered for demanding environments such as vehicle crash testing, microscopy and industrial testing. Its compact, lightweight and ruggedized housing allows flexible onboard or off-board mounting. Configurable ROI and an exposure range from 1.5 µs to 40 ms enable capture of fast transient events.

Key features

• Full resolution: 1920 x 1440 pixels
• Pixel size: 11.0 x 11.0 μm
• Peak quantum efficiency: 50%
• Dynamic range (A/D): 12 bit
• Readout noise: 22 e- rms
• Max frame rate: 1603 fps
• Exposure time: 1.5 µs – 40 ms
• ROI: 24 x 4 pixels (centered)
• Optical inputs: F-mount, C-mount
• Video output: HD-SDI
• Data interface: GigE

Technical specifications

• Resolution: 1920 x 1440 pixels
• Pixel size: 11.0 x 11.0 μm
• Peak quantum efficiency: 50%
• Dynamic range (A/D): 12 bit
• Readout noise: 22 e- rms
• Frame rate: 1603 fps
• Exposure time range: 1.5 µs - 40 ms
• Region of interest (ROI): 24 x 4 pixels (centered)
• Optical input: F-mount, C-mount
• Data interface: GigE
• Part number: 85108052001
