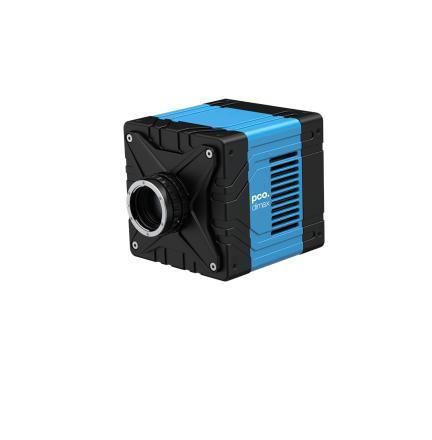

Digital camera pco.dimax 3.6 DS ST

for research and developmentfor scientific applicationsfor the automotive industry

Overview
The pco.dimax 3.6 DS ST double-shutter CMOS high-speed camera combines full-resolution imaging with acquisition rates exceeding 1000 double images per second in double-shutter mode, enabling precise measurements for demanding scientific and industrial applications. Its sensor and readout architecture support short interframing times and continuous high-resolution streaming via CLHS FOL.

Key Features

• Interframing time: 250 ns in double-shutter mode
• CLHS FOL interface for high-resolution streaming
• Resolution: 1984 × 1808 pixels
• Designed and optimized for Particle Image Velocimetry (PIV)

Applications

• Particle Image Velocimetry (PIV) and particle tracking
• Flow visualization and fluid dynamics research
• Combustion analysis and fuel injection studies
• Impact testing, ballistics and materials research
• Automotive airbag and component testing
• Welding process analysis and laser/inert gas welding
• Wind tunnel studies and aerodynamics
• Industrial production control and quality assurance
• Pressure-sensitive paint (PSP)

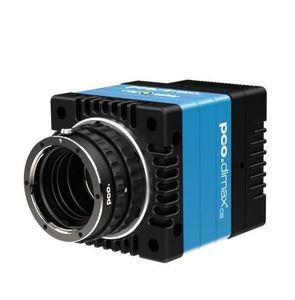

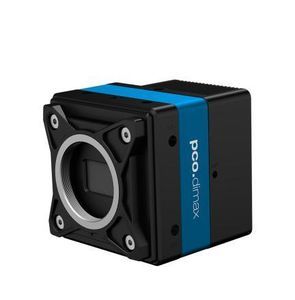

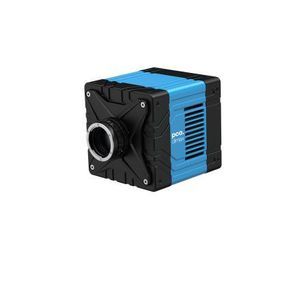

Product Gallery (views)

• Side view
• Front view
• Rear view

Specifications

• Part number: 85108025001
• Sensor type: Double-shutter CMOS
• Maximum acquisition: Over 1000 double images/s (full resolution)
• Interframing time (double-shutter mode): 250 ns
• Resolution: 1984 × 1808 pixels
• Interface: CLHS FOL (for high-resolution streaming)
• Optimized for: Particle Image Velocimetry (PIV)
• Suitable for: high-speed scientific and industrial imaging (combustion research, impact testing, flow analysis, etc.)
