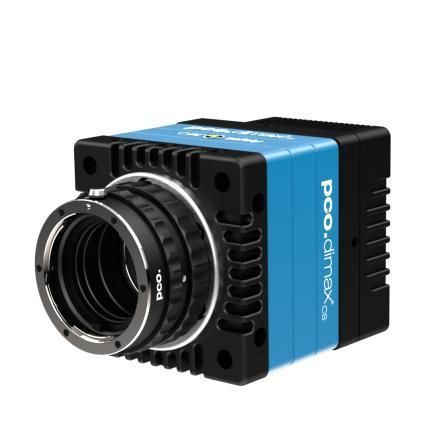

Digital camera pco.dimax cs4

area scanfor microscopesfor research and development

Product overview
The pco.dimax cs4 high-speed camera offers high light sensitivity, accurate image quality and faithful color rendering suitable for precise image analysis and measurements. It records at frame rates up to 1102 fps at a resolution of 2016 x 2016 pixels and includes control software for playback and export of slow-motion sequences.

Series description
The pco.dimax cs series is designed for harsh and demanding applications such as vehicle crash tests and microscopy. Its compact, lightweight and ruggedized design allows mounting onboard or off-board in multiple positions.

Features

• High light sensitivity and color fidelity for precise image analysis
• Up to 1102 frames per second at 2016 x 2016 pixel resolution
• Control software with playback and export of slow-motion sequences
• Multiple lens mounts including electronic lens control (F-mount, C-mount)
• HD-SDI video output and automatic image calibration
• Compact, lightweight, ruggedized design for onboard and off-board mounting

Technical specifications

• Part number: 85108052005
• Commercial name: pco.dimax cs4
• Resolution: 2016 x 2016 pixels
• Pixel size: 11.0 x 11.0 μm
• Peak quantum efficiency: 50
• Dynamic range A/D: 12 bit
• Readout noise: 22 e- rms
• Frame rate: 1102 fps
• Exposure time range: 1.5 µs - 40 ms
• Region of interest (ROI): 24 x 4 pixels (centered)
• Optical input: F-mount, C-mount
• Data interface: GigE
