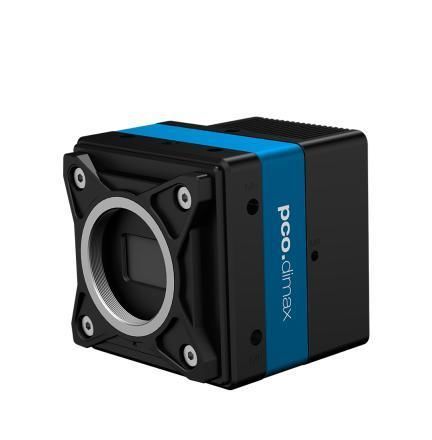

Digital camera pco.dimax cs8

for aerospace applicationsfor the automotive industryfor research and development

Overview
The pco.dimax cs8 is a 4K high-speed camera designed for automotive and industrial testing. It combines a back-illuminated CMOS sensor with global shutter, onboard recording and native FALCON software integration to capture and safeguard critical high-speed events in harsh test environments.

Key capabilities

• Back-illuminated CMOS sensor delivering more than 1,100 fps at full 4K resolution (3840 × 2160) and up to 5,360 fps at Full HD for detailed analysis of fast events.
• Integrated 25 GB internal memory for secure onboard recording and optional battery backup to protect data during power interruptions.
• Native integration with FALCON high-speed video software for streamlined deployment within automotive test infrastructures.
• Ruggedized design and serviceability aimed at long-term operational reliability and competitive total cost of ownership.

Features

• 8 MP High Resolution — 3840 × 2160 pixel sensor resolution for detailed crash-test imagery and frame-by-frame analysis.
• High-Speed Performance — Over 1,100 fps at 4K and over 5,000 fps at Full HD to record extremely fast phenomena accurately.
• Global Shutter Technology — Back-illuminated CMOS with global shutter eliminates motion distortion at high frame rates.
• Rugged Automotive Design — 150 g shock resistance and compact housing for reliable use in crash-test and field environments.
• Internal Recording Memory — 25 GB onboard memory supports recording without external devices (up to approx. 1.81 s at full resolution).
• Enhanced Data Security — Optional battery pack and SD card support to secure recorded data in case of power loss.
• FALCON Software Integration — Native support for FALCON simplifies installation and operation in existing test setups.
• Flexible Optical Interface — Compatible with C-Mount, F-Mount and EF-Mount lenses for diverse optical configurations.

Applications

• Automotive safety testing
• Crash testing
• Industrial R&D and motion analysis
• Aerospace testing
• Defense and transportation testing
• Scientific research and high-speed experiments

Technical specifications

• Sensor Technology: back illuminated CMOS
• Resolution (H x V): 3840 x 2160
• Pixel Size (H x V): 5.0 x 5.0 µm
• Sensor Diagonal: 22.0 mm
• Peak Quantum Efficiency: 70.0 %
• Peak Quantum Efficiency Wavelength: 550.0 nm
• Global Shutter: true
• Rolling Shutter: false
• Global Reset: false
• Operational Modes: High Gain; Low Gain
• Readout Noise RMS: 3.5 e- ; 32.0 e-
• Readout Noise Median: 3.5 e- ; 32.0 e-
• Fullwell Capacity: 8100 e- ; 41300 e-
• Dynamic Range: 2660:1 ; 1413:1
• Dynamic Range (log): 68.5 dB ; 63.0 dB
• Frame rate (Full Sensor): 1141.0 fps
• Dynamic Range A/D Converter: 12 bit
• Thermo Electric Cooling: true
• Forced Air: true
• Liquid Cooling: false
• Data Interface: Gigabit Ethernet
• Included Lens Mount: C-Mount; F-Mount
• Width: 88.0 mm
• Length: 80.0 mm
• Height: 88.0 mm
• Weight (kg): 0.85
• Part Number: 85108052120
