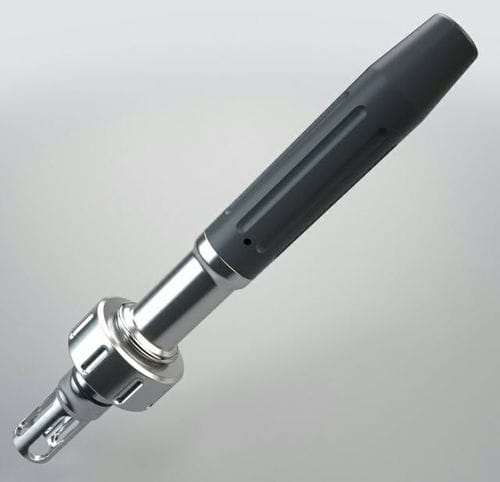

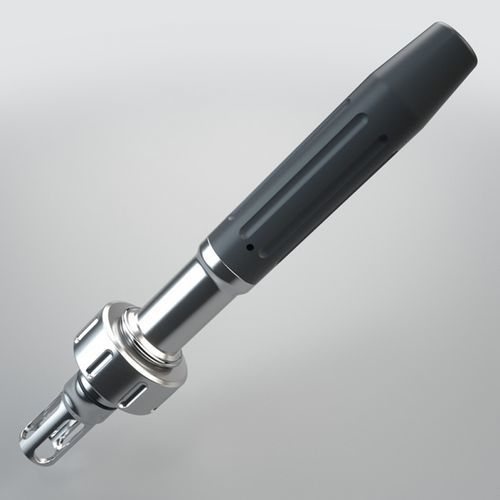

Static probe housing EXstatic 310

Description
Static probe housing for permanent installation of Ø12 mm/120 mm sensors on welding sockets G1 1/4" (DN25) in tanks or pipelines. Easy to install; available with or without sensor protection cage. Glass sensors and other sensor types are protected against mechanical influences.

Your advantages

• Designed according to hygienic criteria
• Surface finish Ra
• Stainless steel AISI 316L / 1.4404
• EPDM seals with FDA and USP VI approval
• Optional sensor protection cage
• Rated up to 10 bar and 140 °C
• Protection cap for cable connection

Applications

• For all Ø12/120 mm sensors with PG13.5 thread (pH glass and ISFET sensors; conductivity, temperature, turbidity and other optical sensors)
• Chemical industry
• Food industry
• Pharmaceuticals
• Water and wastewater treatment

Technical specifications

• Process pressure: 0...10 bar
• Process temperature: -10...140 °C
• Material: 1.4404 / 316L
• Surface: Ra
• Sealing material: EPDM (FDA / USP VI) or FPM (Viton)
• Cable guard material: PA6.6 GF30
• Certificates: material, surface, sealing material
• Options: with or without protection cage
• Process connection: G1 1/4" (DN25), O-ring position 25 mm
• Sensors: 120 mm for Ø12 mm, thread PG13.5
