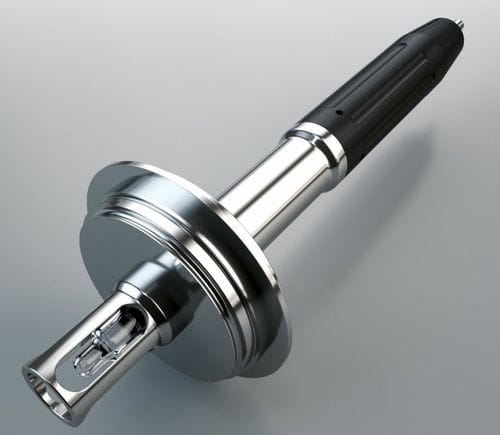

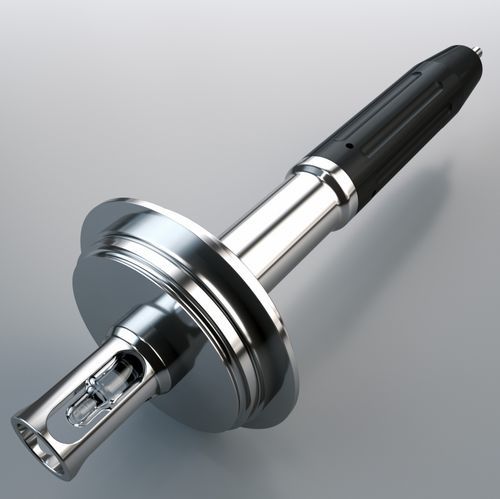

Static probe housing EXstatic 312

Product description
Static probe housing for permanent installation of Ø12 mm / 120 mm sensors on tanks or pipelines via hygienic process connections. Suitable for sensors with PG13.5 thread; available with or without a sensor protection cage. Protects glass and other sensitive sensors against mechanical influences.

Your advantages

• Designed according to hygienic standards (EHEDG / 3A)
• Surface finish Ra
• Stainless steel AISI 316L / 1.4404
• EPDM seals with FDA and USP VI approval (optionally FPM / Viton)
• Optional sensor protection cage
• Operational up to 10 bar and 140 °C
• Protection cap for cable connection

Applications

• For all types of Ø12 / 120 mm sensors with PG13.5 thread (pH glass and ISFET sensors, conductivity or temperature sensors, turbidity and other optical sensors)
• Food industry
• Pharmaceuticals
• Biotech

Specifications
Process pressure: 0...10 bar
Process temperature: -10...140 °C
Material: 1.4404 / 316L
Surface: RaSealing material: EPDM / FDA / USP VI or FPM (Viton)
Material cable guard: PA6.6 GF30
Certificates: material, surface, sealing material
Option: with or without protection cage
Sensors: 120 mm Ø12 PG13.5
Process connections: Varivent N, Neumo BioControl D50

Technical specifications

• Process pressure: 0...10 bar
• Process temperature: -10...140 °C
• Material: 1.4404 / 316L (stainless steel)
• Surface finish: Ra
• Sealing material: EPDM (FDA / USP VI) or FPM (Viton)
• Material cable guard: PA6.6 GF30
• Certificates available for material, surface and sealing material
• Optional sensor protection cage
• Sensor compatibility: 120 mm / Ø12 mm with PG13.5 thread
• Process connections: Varivent N DN40-125 or NEUMO BioControl D50
