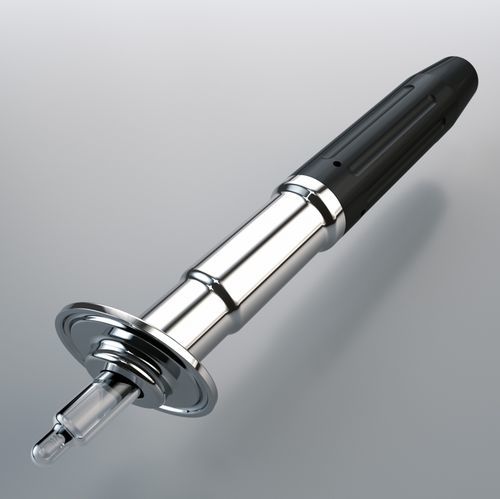

Static probe housing EXstatic 315

Product overview
EXstatic 315 is a static probe housing with a 15° angled process connection for permanent installation of Ø12 mm / 120 mm sensors on tanks or pipelines. TriClamp and hygienic process connections such as Varivent and NEUMO BioControl are available. The housing secures sensors at the optimal insertion angle and protects the sensor head and cable connection.

Your advantages

• Designed according to hygienic criteria (EHEDG / 3A compatible process connections)
• Surface finish Ra
• Stainless steel 1.4404 / AISI 316L
• EPDM seals with FDA and USP VI approval (alternative FPM / Viton available)
• Operational up to 10 bar and 140 °C
• Protection cap for cable connection
• 15° angled process connection for vertical installations

Applications

• For all Ø12 / 120 mm sensors with PG13.5 thread (pH glass and ISFET, conductivity, temperature, turbidity and other optical sensors)
• Chemicals
• Food industry
• Pharmaceuticals
• Especially suitable for installation in vertical pipelines or tanks

Characteristics / Technical specifications

• Model: EXstatic 315
• Function: static probe housing with 15° angled process connection
• Process pressure: 0...10 bar
• Process temperature: -10...140 °C
• Material: 1.4404 / 316L
• Surface: Ra
• Sealing material: EPDM (FDA / USP VI) or FPM (Viton)
• Cable guard material: PA6.6 GF30
• Certificates: material, surface, sealing material
• Design: without protection cage (optional available)
• Process connections: TriClamp 1–1.5" (Ø50.5), TriClamp 2" (Ø64), Varivent N or NEUMO BioControl D50
• Sensors: 120 mm Ø12 PG13.5
