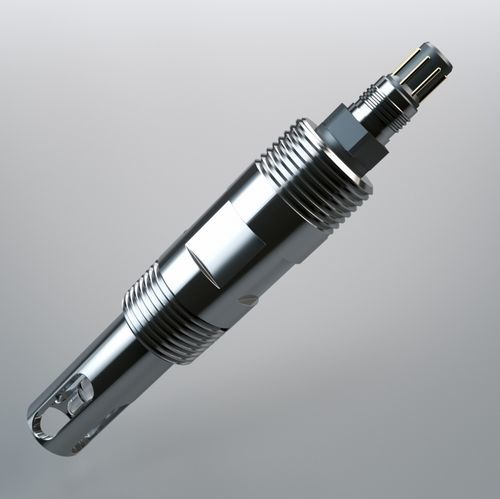

Static probe housing EXstatic 340

Product description
EXstatic 340 is a static probe housing for permanent installation of Ø12 mm / 120 mm sensors in tanks or pipes. Designed for common MNPT 3/4" or 1" process sockets, it is available in stainless steel (AISI 316L / 1.4404), PVDF or PP and enables replacement of US fixed-installation sensors while adapting measurement points (pH, conductivity, temperature, turbidity and optical sensors) to European instrumentation.

Your advantages

• Replacement for US sensors with NPT thread
• Wetted materials: AISI 316L / 1.4404, PVDF, PP
• Sealing options: EPDM, FPM (Viton), FFKM (Kalrez)
• Process connection: MNPT 3/4" or MNPT 1"
• Optional sensor protection cage
• Operating range up to 10 bar and 140 °C

Applications

• For Ø12 / 120 mm sensors with PG13.5 thread (pH glass and ISFET sensors, conductivity, temperature, turbidity and other optical sensors)
• Chemicals
• Water
• Wastewater

Technical characteristics / specifications

• Process pressure: 0...10 bar
• Process temperature: -10...140 °C
• Materials: 1.4404 / 316L, PP, PVDF
• Surface finish: Ra < 0,78
• Sealing materials: EPDM (FDA/USP VI), FPM (Viton), FFKM (Kalrez)
• Process connection: NPT 3/4" or NPT 1"
• Supported sensors: 120 mm, Ø12, PG13.5
• Options: protection cage (optional)
