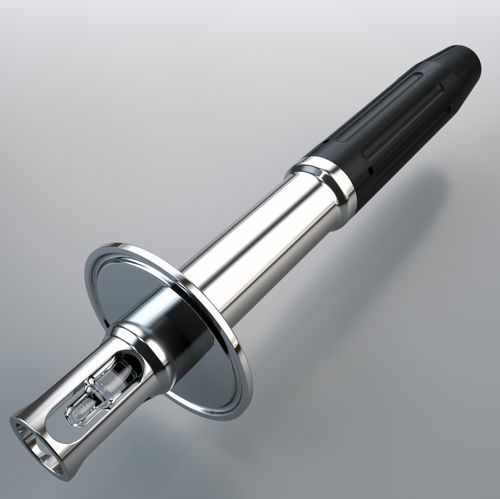

Static probe housing EXstatic 311

Product overview
Static probe housing for permanent installation of Ø12 mm / 120 mm sensors on tanks or pipelines via TriClamp process connection. Easy to install; available with or without sensor protection cage. Particularly suitable to protect delicate sensors (e.g. glass pH electrodes) from mechanical influences.

Your advantages

• Hygienic design for food and pharmaceutical environments
• Surface finish Ra
• Stainless steel AISI 316L / 1.4404
• EPDM seals with FDA and USP VI approvals
• Optional sensor protection cage
• Rated up to 10 bar and 140 °C
• Protection cap for cable connection

Configuration options

• Wetted material: Stainless Steel 1.4404 / 316L Ra0,78 or Ra0,37
• Sealing material (wetted): EPDM (FDA/USP VI) or FPM (Viton)
• Sensor type: 120 mm, PG13.5, Ø12 mm
• Process connection: TriClamp 1–1.5 (OD Ø50.5 mm) or TriClamp 2.0 (OD Ø64 mm)
• Immersion length: 45 mm or 80 mm under process connection
• Protection cage: with or without

Specifications / Technical information
Process pressure: 0...10 bar
Process temperature: -10...140 °C
Material: 1.4404 / 316L
Surface: RaSealing material: EPDM (FDA/USP VI) or FPM (Viton)
Cable guard material: PA6.6 GF30
Certificates: material, surface, sealing material
Option: with or without protection cage
Process connection: TriClamp 1–1.5 (Ø50,5) or TriClamp 2 (Ø64)
Sensors: 120 mm Ø12 PG13.5

Applications

• For all Ø12/120 mm sensors with PG13.5 thread (pH glass and ISFET sensors, conductivity and temperature sensors, turbidity and other optical sensors)
• Food industry
• Pharmaceuticals
