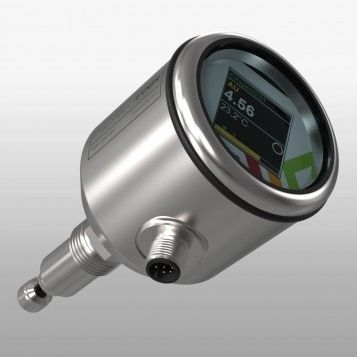

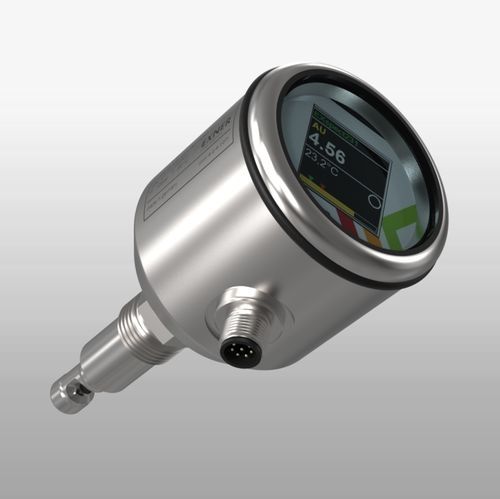

NIR absorbance sensor EXspect 231

Overview
EXspect 231 is a NIR compact absorption sensor for monitoring production processes in the food, beverage and pharmaceutical industries and other process applications. The stainless steel housing with wear-free sapphire windows includes an integrated digital measuring amplifier and a touch display. Measurement units can be output in % turbidity, absorption or common turbidity units. A maximum measuring range of 0...6 AU is available and can be output via the standard 4...20 mA interface. Two alarm limits can be programmed and various switching outputs are available.

Parametrization and calibration
Parameterization via the integrated touch display or via EXpert parameterization software. Optical filters of the EXcap110 series are available to check and calibrate the sensor.

Versions / Options

• Measuring range versions: 0...100 % absorption; 0...3.5 AU (0...3850 EBC / 0...7 OD); 0...6 AU (0...6600 EBC / 0...12 OD)
• Optical path lengths: 5 mm, 10 mm, 20 mm
• Wetted parts material: Stainless steel 1.4435 (316L)
• Sealing material for wetted parts: version without elastomer seals (metal-sealed)
• Process connections: G1/2" (metal-sealed); Varivent N DN40-125 (EHEDG/3-A); Tri-Clamp 1.5" or 2" (EHEDG/3-A)
• Interfaces / electrical connection: analog 4...20 mA (M12 5-pin) or analog 4...20 mA + digital parameterizable (M12 8-pin)
• Display: available with integrated touch display

Key advantages

• Compact design with integrated amplifier and touch display
• Output in % absorption / EBC / FAU / mg/l / AU / OD or customer-defined units
• Durable sapphire windows
• Hygienic design, CIP/SIP capable
• LED light source for durable and stable signal
• Easy parameterization via display or EXpert software
• Configurations available to EHEDG / 3-A

Applications

• Reliable phase separation
• Filter monitoring
• Control of separators
• Color-independent concentration measurement

Technical specifications

• Max. measuring range: 0...100 % / 0...6 AU / 0...6600 EBC
• Resolution: 0.1 % or 0.01 AU
• Accuracy: ±1 % of reading
• Reproducibility: ≤1 % of end value
• Wavelength: 850 nm
• Light source: LED
• Optical path lengths: 5, 10 or 20 mm
• Material: Stainless steel 1.4435 (316L)
• Surface finish: Ra < 0,37 μm
• Windows: Sapphire
• Supply voltage: 24 V DC
• Contact output: NO or NC configurable, 150 mA
• Input contact: zeroing
• Process temperature: -10...90 °C, 135 °C max. 1 hour (SIP)
• Process pressure: max. 16 bar (232 psi)
• Electrical connection: M12 connector 5-pin or 8-pin (digital parameterizable)
• Interfaces: 4...20 mA
• Parameterization: EXpert software
• Protection class: IP69
