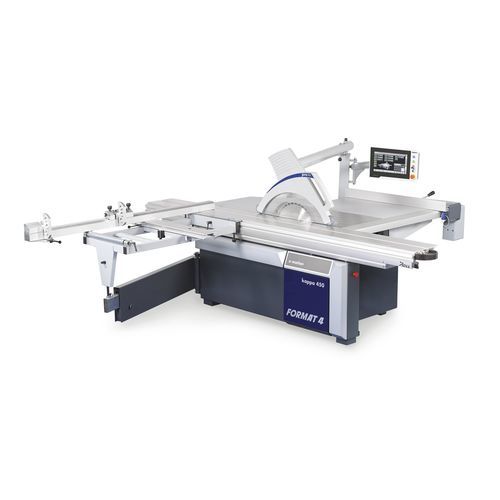

Circular saw kappa 450 x-motion

panelsliding tablehorizontal

Overview
The all-time classic sliding table panel saw designed for industrial panel processing. The kappa 450 x-motion combines a heavy-duty saw unit with ergonomic x-motion control and programmable sequences to increase productivity and operator safety.

Main product description
The oversized circular saw unit accepts blades up to 450 mm, providing a maximum cutting height of 155 mm. The machine offers 3-axis control, a precision X-Roll sliding table, and an intuitive central operating unit with a 10" touchscreen. The x-motion variant includes automatic rip fence, unlimited tool storage and programmable cutting sequences in the integrated software.

Highlights

• PCS® — Preventive Contact System: fastest non-contact triggering safety device, detects hazards before blade contact and neutralises dangerous situations in milliseconds (complements, does not replace, required protective equipment).
• Saw Unit “155”: heavy-duty cast iron construction for stability and precision.
• “X-Roll” sliding table with 10-year guarantee for consistent, low-friction guidance.
• Optional electronic digital-display for fence readable from every position.

Key features (extracted lists and details)

• Saw Unit “155”: 155 mm cutting height with 450 mm blade; tilt 0°–45°; Easy-Glide tilt segment; oversized arbor with double trunnions; 3-axis Control scoring unit with park position; tool-free blade change; optional spraying unit for non-ferrous metals and plastics.
• PCS® safety: detects hazards before contact, eliminates hazardous situations in milliseconds, prevents damage to machine and blade, requires no external sensors or extra energy.
• Drive and arbor: vibration-free machining with oversized arbor; Poly-V-belt drive; standard speeds 3500/4500/5500 rpm; with 10 kW motor speeds 3500 and 4500 rpm; optional continuous 2000–6000 rpm.
• Rip fence and measurement: standard rip fence on round bar guide with table scale and fine adjustment; optional LED digital display with measurement compensation for saw blade tooth width; fence reversible to face-down position.
• Optional equipment: overhead guard with below-table extraction, spraying unit for non-ferrous metals/plastics, pneumatic workpiece holder, laser cutting line, red LED scoring-unit indicator.
• Quick blade change systems: Quick-Lock and Easy-Lock for fast, tool-free maintenance.
• Dado capability in kappa family: dedicated dado cutter head for accurate dado cuts (6–20 mm).

Variants

• kappa 450
• kappa 450 x-motion (x-motion control with 10" touchscreen, automatic rip fence, programmable sequences)

Technical specifications

• Model: kappa 450 x-motion (variant: kappa 450)
• Blade diameter: up to 450 mm
• Cutting height: up to 155 mm
• Saw blade tilt: 0°–45° (109 mm at 45°)
• Scoring unit: 3-axis Control scoring unit; park position; optional red LED indicator
• Control: x-motion control with 10" touchscreen (x-motion) or Power Drive on other configurations
• Rip capacity: approx. 800–1500 mm (dependent on configuration)
• Cutting length: approx. 2050–3700 mm (dependent on configuration)
• Sliding table: X-Roll with 10-year guarantee
• Speeds: standard 3500/4500/5500 rpm; with 10 kW motor 3500/4500 rpm; optional 2000–6000 rpm continuously variable
• Blade change: tool-free (Quick-Lock / Easy-Lock)
• Optional: spray unit for non-ferrous metals/plastics, PCS® Preventive Contact System, overhead guard with below-table extraction
• Additional functions: automatic rip fence, unlimited tool storage, programmable cutting sequences, pneumatic workpiece holder (clamping height 95 mm, approx. 300 kg clamping force)
