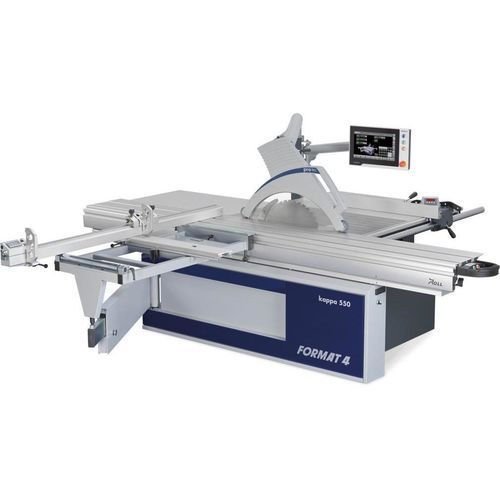

Panel saw kappa 550 x-motion

sliding tablefor non-ferrous metalsfor plastics

Overview
The Format4 kappa 550 x-motion is a high‑performance sliding table panel saw designed for industrial production. It combines precision cast‑iron mechanics, advanced automation and integrated safety systems to deliver repeatable accuracy and efficient throughput for cabinetmakers, joineries and panel manufacturers.

Key product features
The x‑motion / e‑motion options provide an automatic rip fence, extensive on‑board tool storage and programmable cutting sequences via the central 15‑inch touchscreen. All axes are controlled ergonomically for fast setup and consistent results. The kappa 550 is also the first sliding table saw worldwide fitted with the PCS® Preventive Contact System.

Highlights

• “X‑Roll” sliding table with 10‑year guarantee (precision roller bearing guidance)
• WORLD FIRST: PCS® Preventive Contact System for fast non‑contact safety triggering
• Intuitive smartouch control via central 15‑inch touchscreen
• Easy‑Glide swivel segment guiding for maintenance‑free saw tilt
• High positioning speed with 3‑axis simultaneous movement (up to 50% time savings)
• Designed for continuous industrial operation with stable performance
• Multiple configurable specification packages and customer‑specific production solutions

Details & Functionality
The updated heavy cast‑iron Format4 saw carriage ensures precision and smooth running. Equipment options and notable functions include:

• 3‑axis Control scoring unit with park position
• Tool‑free blade change options (Easy‑lock / Quick‑lock)
• Large cutting depth even with scoring unit installed
• Optional spray system for non‑ferrous metals and plastics
• Saw unit with Easy‑Glide tilt segment guiding system
• Tilting range of saw blade: 0°–46°
• Scoring unit options: Classic or Automatic; scoring blade 5″ diameter, 10,300 rpm (60 Hz)
• Signal lamp integrated in the overhead guard indicating PCS® status
• Dado capability with dedicated dado cutter head (clean precise dado cuts 6–20 mm)
• Optional red LED indicator for scoring unit operation (visual safety)

Premium engineering & user benefits

• Robust design with premium components and precise engineering
• High operator comfort and ergonomic central control
• Tailor‑made financing and comprehensive service packages
• Manufactured in Austria with decades of mechanical engineering expertise

Technical specifications

• Designation: kappa 550 x‑motion (product family: kappa 550)
• Cutting length: 2,200–3,700 mm (≈86½″–145¾″)
• Cutting width: 1,000–1,600 mm (≈39¼″–63″)
• Cutting height: 202 mm at 90°; 141 mm at 45°
• Tilting saw blade: 0°–46°
• Control variants: x‑motion, e‑motion, Digi‑Drive (model dependent)
• Operation: central 15‑inch touchscreen, programmable cutting sequences
• Program storage: e.g. unlimited program spaces + ARDIS optimisation (e‑motion) / 9×99 program spaces (x‑motion) depending on variant
• Scoring unit: 5″ diameter scoring blade, 10,300 rpm (60 Hz); Classic or Automatic
• Sliding table guide: X‑Roll roller bearing system, 10‑year warranty
• Easy‑Glide swivel segment guide for aggregate tilt (maintenance‑free, 6‑year warranty)
• Oversized saw arbor with double bearing trunnions and Poly‑V‑belt drive for vibration‑free operation
• PCS® Preventive Contact System: rapid non‑contact triggering, reset at push of a button; dust‑ and dirt‑resistant (does not replace legally required guards)
