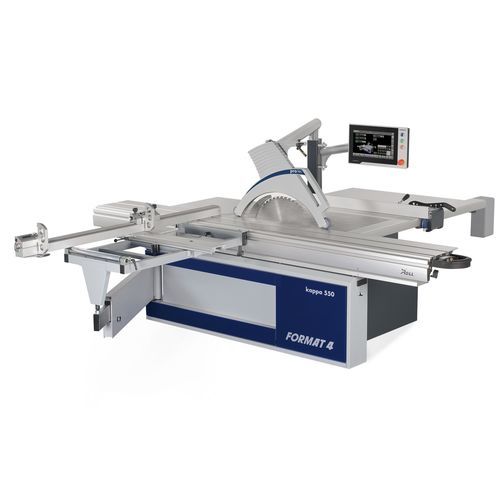

Panel saw kappa 550

sliding tablewoodfor panels

Overview
The kappa 550 is a top‑level sliding table panel saw designed for precision woodworking in industrial and bespoke production environments. It combines advanced guidance systems, intelligent control options and integrated safety features for automated, high‑throughput cutting operations.

Key product features

• e-motion control concept with central operating unit and 15" touch screen for ergonomic, intuitive operation.
• e-motion functions: automatic rip fence, unlimited tool storage and programmable cutting sequences; all machine axes controllable from the central unit.
• WORLD FIRST: PCS® (Preventive Contact System) — fast, non‑contact triggering safety device that detects hazards before contact with the blade and stops hazardous situations within milliseconds.
• "X‑Roll" sliding table guiding system for high precision and long life (10‑year guarantee).
• "Easy‑Glide" tilt segment guiding for the saw unit — maintenance‑free pivoting (6‑year warranty).
• High positioning speed with simultaneous 3‑axis positioning to reduce cycle times.
• Robust heavy cast‑iron saw assembly with oversized arbor and double bearing trunnions for vibration‑free machining.
• Flexible scoring options: 3‑axis scoring unit with park position; Classic or Automatic scoring units (5" scoring blade, 10,300 rpm at 60 Hz).
• Multiple variants available (kappa 550, kappa 550 e‑motion, kappa 550 x‑motion) offering different control systems and program capacities.

Highlights & Advantages

• Designed for continuous industrial operation with consistent performance.
• Customer‑specific production solutions and multiple specification packages with high‑tech options.
• Premium user ergonomics, quality components and precise engineering.
• Long‑term warranties for core systems (X‑Roll 10 years, Easy‑Glide 6 years).

Safety & Operation

• PCS® Preventive Contact System detects hazards before contact and neutralises dangerous situations while protecting the machine and blade; enables safe operation close to the blade and supports groove cuts.
• PCS® status indicated by signal lamp integrated into the overhead saw guard.
• Smartouch / smart control interface with graphical UI, multiple programs, USB interface and prepared network connection for data import/export and remote maintenance.

Applications

• Precision cutting of panels and solid wood: rabbets, grooves, notches, angle and oblique cuts, false mitres, compound cuts and complex programmed operations.
• Industrial and custom production environments that require high throughput, accuracy and automation.

Technical specifications

• Cutting length: 86½" – 145¾" (2,200 – 3,700 mm).
• Cutting width: 39¼" – 63" (1,000 – 1,600 mm).
• Cutting height at 90°: 8" (202 mm).
• Cutting height at 45°: 5" (141 mm).
• Saw blade tilt: 0° – 46°.
• Control systems (depending on model): e‑motion, x‑motion, Digi‑Drive.
• Scoring blade: 5" diameter (10,300 rpm at 60 Hz).
• Scoring: 3‑axis scoring unit with park position; Classic or Automatic options.
• Sliding table guiding: X‑Roll roller bearing system (10‑year guarantee).
• Saw unit tilt guiding: Easy‑Glide swivel segment guide (maintenance‑free, 6‑year warranty).
• Saw arbor: oversized with double trunnions; Poly‑V‑belt drive technology.
• Safety: PCS® Preventive Contact System (non‑contact triggering), PCS® signal lamp in overhead saw guard.
• Software: in‑house graphical UI, programmable cutting sequences, ARDIS cutting optimisation (∞ program spaces on certain variants).
